Gable rooflines blended with a combination of shingle siding and stone all work together to give this traditional ranch a modern touch. An L-shaped floor plan with a direct line of access from the kitchen to both the dining and great rooms creates a space large enough for everyday living. The bedrooms lie to the left of the entry and include a master suite complete with walk-in closet, corner Jacuzzi tub and dual sinks. Two additional bedrooms, both with walk-in closets and access to a Jack and Jill bath are located in front of the home. A two-stall garage completes this home.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

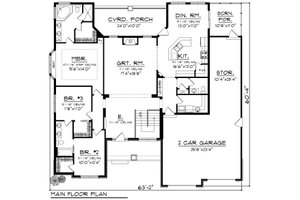

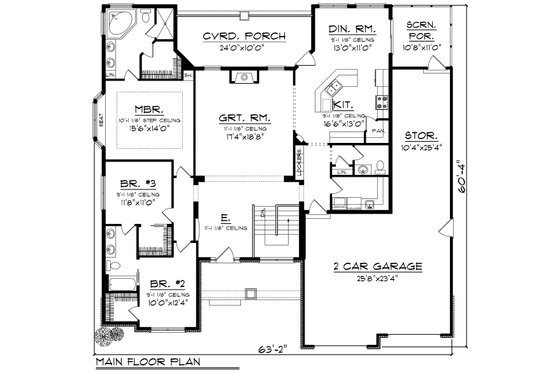

Floor Plan - Main Floor Plan


Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 1
Garages: 2


Depth : 60' 4"
Height : 28' 2"
Width : 63' 2"


Total : 2129 sq/ft
First Floor: 2129 sq/ft
Garage: 871 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Ceiling Details : Entry/Grt Rm 11', Master Bdrm 10' Step
Lower Ceiling : 9'
Main Ceiling : 9'


Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Shake, Stone, Siding
Framing : 2x6

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island

Additional Room Features

Great Room Living Room
Main Floor Laundry
Master Sitting Area
Mud Room
Storage Area
Unfinished Future Space

Garage Features

Front Entry Garage
Oversized Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Screened Porch


Jack & Jill Bath


Bedroom 2:

width 10' x depth 12' 4"

Bedroom 2 Closet:

width 5' 8" x depth 5' 1"

Bedroom 3:

width 11' 8" x depth 11'

Bedroom 3 Closet:

width 5' 10" x depth 5' 1"

Covered Front Porch:

width 18' 4" x depth 7'

Covered Rear Porch:

width 24' x depth 10'

Dining Room:

width 13' x depth 11'


width 9' 7" x depth 9'


width 25' 8" x depth 23' 4"

Garage Storage:

width 10' 4" x depth 25' 4"

Great Room:

width 17' 4" x depth 18' 8"


width 3' 6" x depth 11' 2"

Jack & Jill Bath:

width 5' 6" x depth 11' 6"


width 16' 6" x depth 13'

Laundry Room:

width 10' 1" x depth 5' 11"

Master Bath:

width 8' 8" x depth 12' 6"

Master Bedroom:

width 15' 6" x depth 14'

Master Closet:

width 7' 1" x depth 6' 9"

Mud Room:

width 6' 2" x depth 6' 2"


width 4' 1" x depth 4' 1"

Powder Room:

width 6' 1" x depth 5' 4"

What's included in this plan set

See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
