Plan Description


This split bedroom Delray House Plan is classic and understated. The real beauty of the Delray, is in the floor plan design that makes so much of so little square footage! This small plan really has it all, starting right at the front door with a modest front porch lined with square columns. Step inside the Foyer and just gaze at the wide open great room with its 11’10” vaulted ceiling. Not one but two sets of sliding glass doors open up the living space to the covered lanai. This is perfect for outdoor entertaining. Plenty of room for alfresco dining and perfect for adding a pool. Open Concept Living The Kitchen provides all the amenities, including an island for quick meals and food prep. A Pantry is close at hand, next to the Utility Room. The Dining Room is sequestered off the foyer and defined by a single column with beams. Its the perfect open-concept space, starting with the Dining Room, the Great Room and the Kitchen. All within open easy access. The entrance to the Master Suite is set back near the rear of the home, and extends the entire depth. The Master Bath provides a corner walk-in shower, with dual sinks and a private privy. The generous master closet makes room for luxurious built-ins. The two Guest Bedrooms share a single bath that is positioned perfectly for Great Room guests to utilize. A carefully crafted entrance makes these two bedrooms feel more private. The 2-Car front load Garage makes grocery drop off a breeze, with its quick access to the kitchen and pantry. The Utility Room has a drop off area with shelves and a closet.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

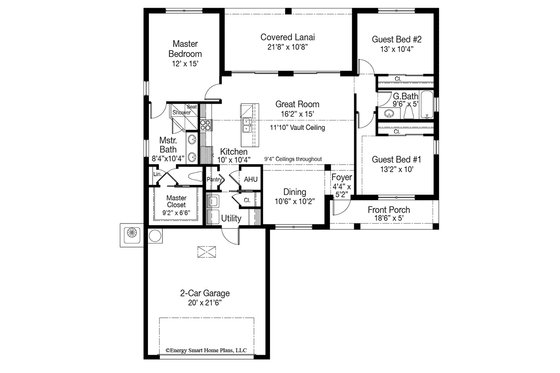

Floor Plan - Main Floor
