This plan was built and is one of our featured Building Stories. Building A Modern Ranch House
The Long House plan by architect Nicholas Lee celebrates easy
indoor-outdoor living. It's inspired by the modern ranch house designs
of regional modern architect William Wurster. The layout is
straightforward: rooms line up like cars on a train, from the spacious
great room/kitchen at one end, past the office, bathroom, bedroom, and
laundry to the master suite at the other end. Each room opens to the
covered gallery running the length of the house. This gallery is wide
enough for sitting and outdoor dining, and doubles as the entrance porch
beside the kitchen. See also Plan 508-2, with an indoor-outdoor lanai
instead of the long porch. View more Ranch style floor plans
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

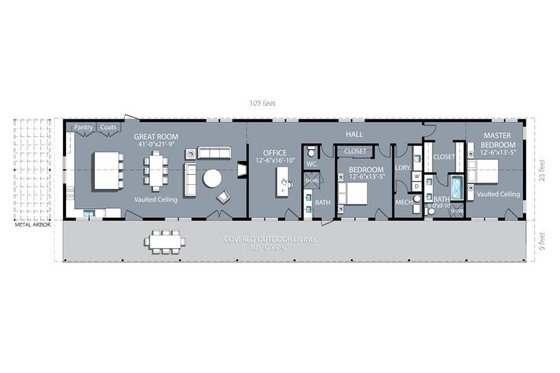

Floor Plan - Main Floor
Full Specs & Features
Main Floor : 2415 sq/ft
Porch : 997 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Vaulted Ceiling at Great Room and Master Bedroom.All other rooms have 10'-0" Ceiling Height.
Main Ceiling : 14'
Primary Pitch : 4:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Board & Batten
Framing : 2x6
Additional Room Features
Den Office Study Computer
Great Room Living Room
Suited For Narrow Lot
Suited For View Lot
Energy Efficient Features
What's included in this plan set
See a sample plan set
*See important information before purchasing
COVER PAGE: Cover Sheet: Showing architectural rendering of residence
FOUNDATION PLAN: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
FLOOR PLAN: Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
ROOF PLAN: An overhead "birds-eye" view of the roof, describing roof slope
ELEVATIONS: A blueprint picture of all four sides showing exterior materials and measurements.
SECTIONS: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
ELECTRICAL PLAN: Shows the locations of lights, receptacles, switches, etc.
TYPICAL WALL SECTION & DETAILS
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set
5 printed plan sets mailed to you.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One electronic set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
