This 3 bedroom 3 bath 3,645 sq. ft. ranch house is by architect Nicholas Lee. The long single gable extends over porches at the sides for easy indoor-outdoor living. The split plan puts the master suite and children's bedrooms on opposite sides of the great room. Board and batten siding and tall double hung windows add rustic character: it's a classic designed for today.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

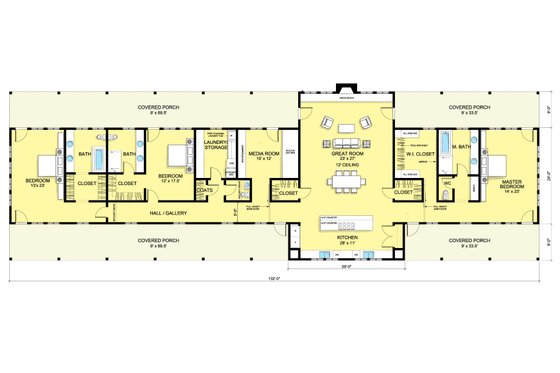

Floor Plan - Main Floor
Full Specs & Features
Decks : 1854 sq/ft
Main Floor : 3645 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 3:12
Roof Framing : Truss
Walk In Closet
Additional Room Features
Great Room Living Room
Covered Front Porch
Covered Rear Porch
What's included in this plan set
See a sample plan set
*See important information before purchasing
COVER PAGE: Cover Sheet: Showing architectural rendering of residence
FOUNDATION PLAN: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
FLOOR PLAN: Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
ROOF PLAN: An overhead "birds-eye" view of the roof, describing roof slope
ELEVATIONS: A blueprint picture of all four sides showing exterior materials and measurements.
SECTIONS: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
ELECTRICAL PLAN: Shows the locations of lights, receptacles, switches, etc.
TYPICAL WALL SECTION & DETAILS
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set
5 printed plan sets mailed to you.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One electronic set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
