Plan 17-157

Photographs may show modified designs.
Plan 17-157

Key Specs


2439
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

Plan Description


Casual sensibility intertwined with exciting angles defines this dazzling four-bedroom home. The impressive gallery demands attention with its French door entry into the large study and boxed columns detailing the formal dining room and family room. The openness of the pass-through fireplace merging with the spacious kitchen and sunny breakfast room promotes a cozy and casual atmosphere ideal for family fun and entertainment. A large master suite includes wonderful amenities Comments: All ceilings 9 ft Foyer with 10 ft ceiling Dining room set off with 8 inch boxed columns Family room with 8 inch boxed columns, access to rear porch Pass through fireplace for Family room and Breakfast room Breakfast room with access to rear porch and has bay window Kitchen with bar and computer area French doors to Study Master Bedroom with 10 ft pan ceiling Master bath with corner whirlpool tub, separate glass shower, dbl. vanities and large walk-in closet Bedrooms 2 and 3 with walk-through access to bath Roof Framing: 2x6 Insulation Exterior Walls: R-13 Ceiling Minimum: R-30 Floor Minimum: R-19 Roof Designed Roof Load: 45-lbs. Psf lbs. psf Roof Pitch - Main: 8:12 Roof Framing Description: Conventional Roof Type: Shingle
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

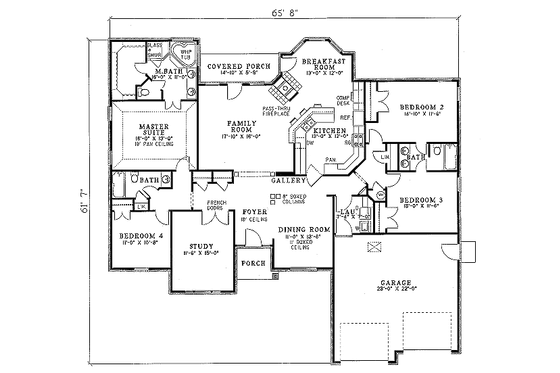

Floor Plan - Main Floor Plan

Reverse

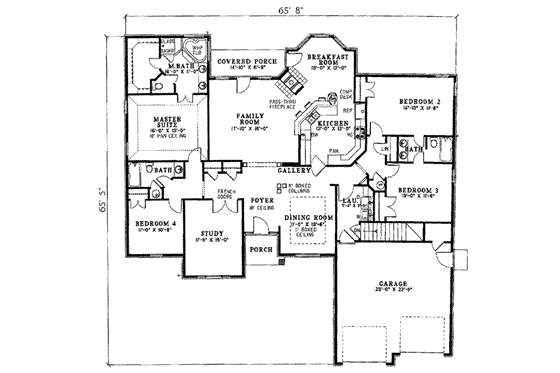

Floor Plan - Other Floor Plan
