Plan #70-1248

Key Specs


  • 2449 sq/ft

  • 3 Bedrooms

  • 2 Baths

  • 1 Story

  • 3 Garages

Plan Description

Craftsman details abound on this stunning ranch home. At just under 2,500 square feet, this home features a classic floor plan with an impressive kitchen island that overlooks the great room. A see-through fireplace divides the sunroom and great rooms while adding a comfortable glow to the living area. The master suite is tucked behind the garages on the right side of the home and features a massive walk-in closet, step ceilings and Jacuzzi tub. Two additional bedrooms lie to the left of the entry and share access to the full bath off the hall. A three-stall, side-split load garage completes the home.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

Floor Plan - Main Floor Plan

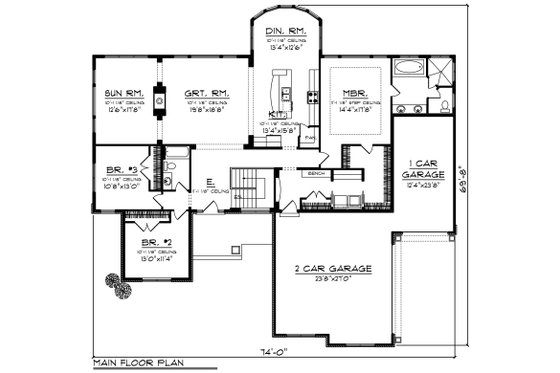

Ranch Style House Plan - 3 Beds 2 Baths 2449 Sq/Ft Plan #70-1248 Floor Plan - Main Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 3

Dimension

Depth : 69' 8"
Height : 27' 11"
Width : 74'

Area

Total : 2449 sq/ft
First Floor: 2449 sq/ft
Garage: 931 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Entry 11', MBR 11' Step.
Lower Ceiling : 8'
Main Ceiling : 10'

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Siding, Shake, Stone
Framing : 2x6
Insulation : R-20

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island

Additional Room Features

Great Room Living Room
Main Floor Laundry
Mud Room
Sunroom
Unfinished Future Space

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch
Screened Porch

What's included in this plan set

See a sample plan set

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*See important information before purchasing
