Plan Description


This ranch design floor plan is 2518 sq ft and has 4 bedrooms and 4 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

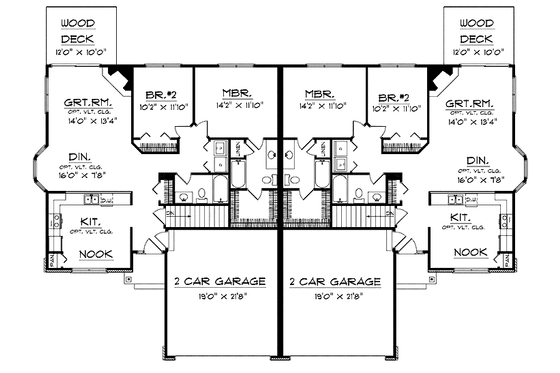

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4
Stories: 1
Garages: 4

Dimension

Depth : 50'
Height : 20' 5"
Width : 84'

Area

Total : 2518 sq/ft
First Floor: 1259 sq/ft
First Floor: 1259 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4

Bedroom Features

Fireplace
Formal Dining Room
Main Floor Master Bedroom

Kitchen Features

Breakfast Nook

Additional Room Features

Great Room Living Room
Main Floor Laundry
Open Floor Plan

Outdoor Spaces

Deck

Rooms

Bathroom 2:

46 sq/ft width 9' 3" x depth 5'

Bathroom 2:

46 sq/ft width 9' 3" x depth 5'

Bedroom 2:

120 sq/ft width 10' 2" x depth 11' 10"

Bedroom 2:

120 sq/ft width 10' 2" x depth 11' 10"

Deck:

120 sq/ft width 12' x depth 10'

Deck:

120 sq/ft width 12' x depth 10'

Dining Room:

122 sq/ft width 16' x depth 7' 8"

Dining Room:

122 sq/ft width 16' x depth 7' 8"

Garage:

411 sq/ft width 19' x depth 21' 8"

Garage:

411 sq/ft width 19' x depth 21' 8"

Gathering Room:

186 sq/ft width 14' x depth 13' 4"

Gathering Room:

186 sq/ft width 14' x depth 13' 4"

Kitchen:

180 sq/ft width 14' 1" x depth 12' 10"

Kitchen:

180 sq/ft width 14' 1" x depth 12' 10"

Laundry Room:

17 sq/ft width 3' 1" x depth 5' 8"

Laundry Room:

17 sq/ft width 3' 1" x depth 5' 8"

Master Bathroom:

67 sq/ft width 8' 1" x depth 8' 4"

Master Bathroom:

67 sq/ft width 8' 1" x depth 8' 4"

Master Bedroom:

167 sq/ft width 14' 2" x depth 11' 10"

Master Bedroom:

167 sq/ft width 14' 2" x depth 11' 10"

Master Closet:

51 sq/ft width 8' 1" x depth 6' 4"

Master Closet:

51 sq/ft width 8' 1" x depth 6' 4"

What's included in this plan set


See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale

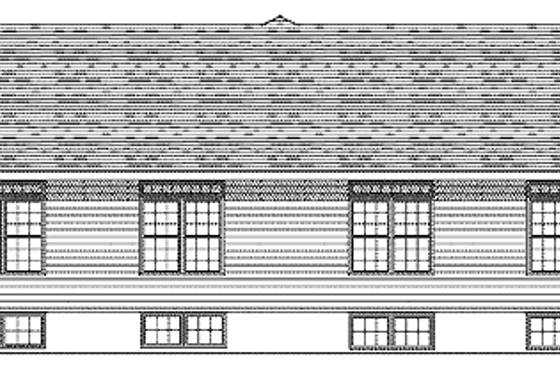

  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
* See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1637.00
5 printed plan sets mailed to you.

8 Copy Set

$1738.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$2393.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$2393.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$4659.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$650.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$650.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00
Wood 2x4 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$395.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$75.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
