Plan 17-2682

Photographs may show modified designs.
Plan 17-2682

Key Specs


2525
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

Plan Description


Perennially popular, this one-story layout makes the grilling porch a priority. Many areas open onto it: the breakfast nook, great room, master suite, and even a hallway near a secondary bedroom. Back inside, the kitchen's snack bar offers another relaxed area to entertain with seating for four. The home theater/living room near the front could also serve as a home office with the addition of some doors. Owners will love the master suite's generous bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

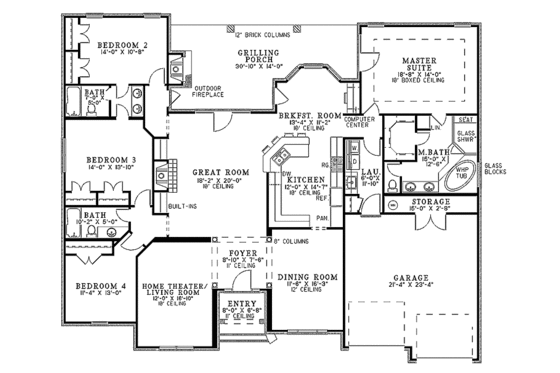

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 1
Garages: 2

Dimension

Depth : 55' 10"
Height : 30' 9"
Width : 67' 2"

Area

Total : 2525 sq/ft
First Floor: 2525 sq/ft height 9'
Garage: 497 sq/ft
Porch: 417 sq/ft
Storage: 39 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
