Plan 1069-18

Photographs may show modified designs.
Plan 1069-18

Key Specs


2551
sq ft

3
Beds

2.5
Baths

2
Floors

3
Garages

Plan Description


Excellent sightlines in this one-story home give you uninterrupted views from the foyer to the back patio, from the kitchen to the living room, and from the dining area to the backyard. The master suite treats you to a spa-like bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

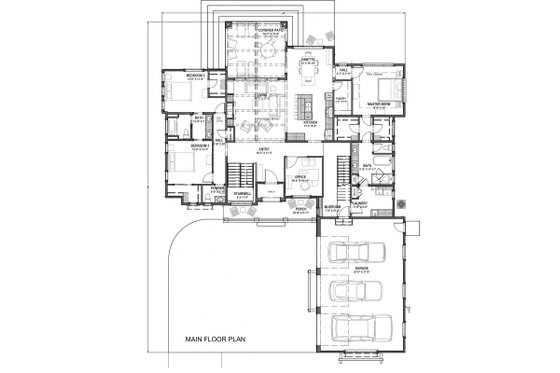

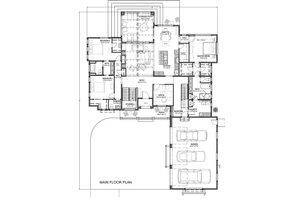

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Lower Floor Plan

Reverse

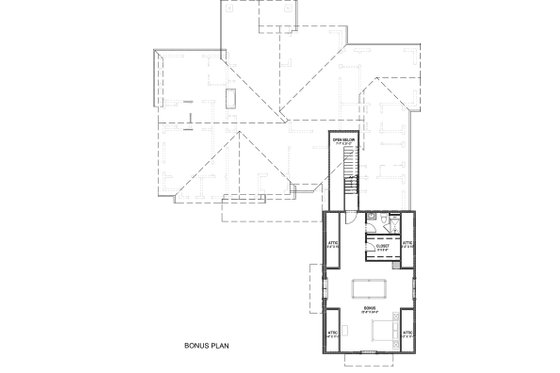

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 3

Dimension

Depth : 69'
Height : 27'
Width : 94'

Area

Total : 2551 sq/ft
Basement : 1243 sq/ft
Bonus : 739 sq/ft
Garage : 954 sq/ft
Lower Floor : 1412 sq/ft
Main Floor : 2551 sq/ft
Porch : 475 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 9'
Main Ceiling : 9'

Roof

Primary Pitch : 10/12
Roof Framing : Truss/Stick
Roof Type : Asphalt
Secondary Pitch : 4/12

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : 2x6

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Main Floor Laundry
Mud Room
Unfinished Future Space

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bath:

width 11' 11" x depth 8' 4"

Bedroom 2:

width 12' 6" x depth 11' 9"

Bedroom 3:

width 12' 8" x depth 12' 3"

Bedroom B1:

width 12' 11" x depth 10' 5"

Bedroom B2:

width 11' 11" x depth 10' 8"

Covered Patio:

width 16' 2" x depth 15' 4"

Dinette:

width 13' 10" x depth 10'

Entry:

width 16' 2" x depth 11' 3"

Finished Storage:

width 6' 2" x depth 8' 11"

Garage:

width 23' 6" x depth 37' 6"

Hall:

width 4' 7" x depth 3' 11"

Kitchen:

width 13' x depth 15' 5"

Laundry:

width 11' 8" x depth 8' 8"

Living:

width 16' 7" x depth 17' 3"

Master Bedroom:

width 14' 4" x depth 14'

Mech:

width 6' 2" x depth 9' 8"

Mudroom:

width 7' 8" x depth 21' 2"

Office:

width 10' 6" x depth 10' 11"

Pantry:

width 4' 11" x depth 9' 9"

Powder:

width 6' 6" x depth 5' 1"

Rec Room:

width 16' 10" x depth 28' 1"

Stairwell:

width 8' x depth 11' 5"

Storage:

width 5' 11" x depth 3' 11"

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

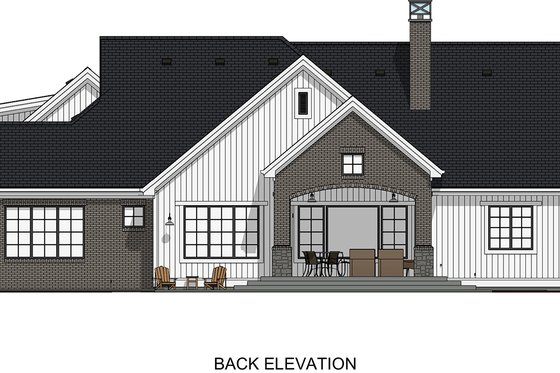

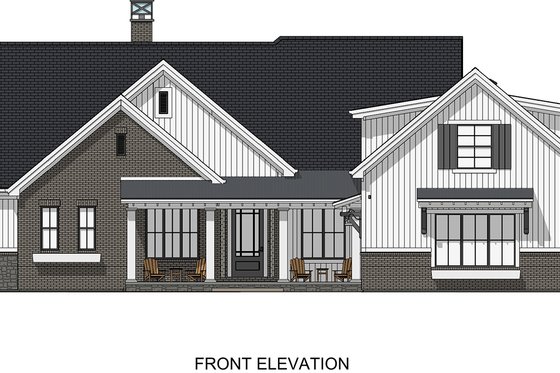

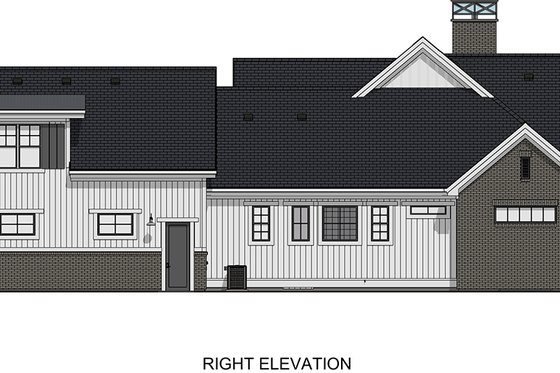

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
