Plan 1069-16

Photographs may show modified designs.
Plan 1069-16

Key Specs


2982
sq ft

3
Beds

3
Baths

1
Floors

2
Garages

Plan Description


Here's a new plan with the right priorities: kitchen, master suite, and outdoor living. Start with the kitchen: a massive island seats five people for casual gatherings, with the living room within sight. Don't miss the master suite's deluxe bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

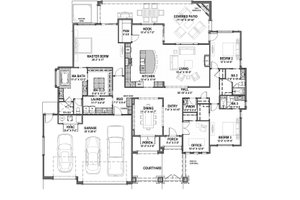

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3
Stories: 1
Garages: 2

Dimension

Depth : 64' 4"
Height : 20' 1"
Width : 81' 8"

Area

Total : 2982 sq/ft
Main Floor : 2982 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 4/12
Roof Framing : Truss/Stick
Roof Type : Clay Tile/Concrete/Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco/Stone
Framing : 2x6

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Mud Room

Garage Features

Oversized Garage

Outdoor Spaces

Courtyard
Covered Front Porch
Covered Rear Porch

Rooms

Bathroom 2:

width 7' 8" x depth 10' 4"

Bathroom 3:

width 10' 1" x depth 5'

Bedroom 2:

width 12' x depth 14' 6"

Bedroom 3:

width 12' 2" x depth 14' 4"

Covered Patio:

width 17' 10" x depth 15' 10"

Dining:

width 11' 2" x depth 14' 7"

Entry:

width 7' 6" x depth 14' 10"

Garage:

width 35' x depth 26' 6"

Hall:

width 38' 10" x depth 4' 3"

HVAC:

width 9' 4" x depth 3' 2"

Kitchen:

width 15' 4" x depth 17' 9"

Laundry:

width 11' 7" x depth 6' 9"

Living Room:

width 18' 4" x depth 16' 9"

Master Bath:

width 11' 3" x depth 13' 3"

Master Bedroom:

width 20' 3" x depth 17'

Master Closet:

width 9' 8" x depth 11' 1"

Mudroom:

width 7' 7" x depth 6' 4"

Nook:

width 12' 4" x depth 7' 2"

Office:

width 10' 4" x depth 12' 6"

Pantry:

width 5' x depth 9'

Porch:

width 10' 4" x depth 5' 8"

Powder:

width 5' 5" x depth 5' 4"

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1350.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1550.00
5 printed plan sets mailed to you.

8 Copy Set

$1650.00
8 printed plan sets mailed to you.

CAD Set

$1650.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Reproducible Set

$1650.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Study Set

$931.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Wood 2x6

$0.00
Wood 2x6

Wood 2x4

$300.00
Wood 2x4

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$100.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Use License

$200.00
Additional Use License.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$100.00
A list of building supplies needed to construct the infrastructure of your new house.

Roof Framing Detail

$250.00
Get a detailed plan for your roof framing.

Unlimited Use License

$3000.00
Unlimited Use License.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

Browse Similar Plans

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
