Plan 1069-19

Photographs may show modified designs.
Plan 1069-19

Key Specs


2593
sq ft

3
Beds

4
Baths

1
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

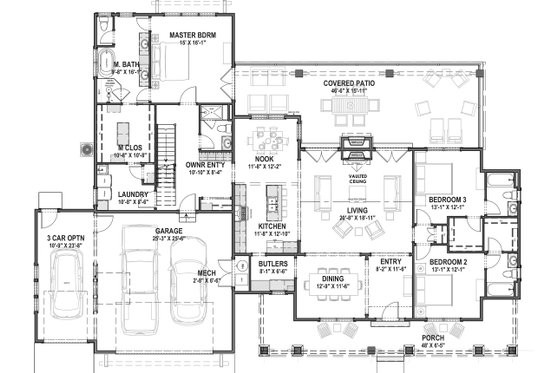

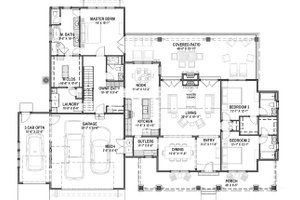

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Lower Floor Plan

Reverse

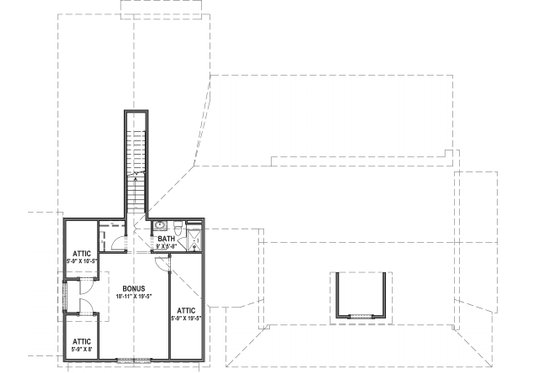

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 4
Stories: 1
Garages: 2

Dimension

Depth : 63'
Height : 28' 8"
Width : 90'

Area

Total : 2593 sq/ft
Basement : 173 sq/ft
Bonus : 444 sq/ft
Garage : 636 sq/ft
Lower Floor : 2444 sq/ft
Main Floor : 2593 sq/ft
Porch : 970 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 12/12
Roof Framing : Combination
Roof Type : Metal/Composition
Secondary Pitch : 4/12

Exterior Wall Framing

Exterior Wall Finish : Slab
Framing : 2x6

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island

Additional Room Features

Unfinished Future Space

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1350.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1550.00
5 printed plan sets mailed to you.

8 Copy Set

$1650.00
8 printed plan sets mailed to you.

CAD Set

$1650.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Reproducible Set

$1650.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Wood 2x6

$0.00
Wood 2x6

Wood 2x4

$100.00
Wood 2x4

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$100.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Use License

$200.00
Additional Use License.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$100.00
A list of building supplies needed to construct the infrastructure of your new house.

Unlimited Use License

$500.00
Unlimited Use License.
