This sprawling ranch home was inspired by the craftsman style and blended with traditional details to create a façade that’s unique and impressive. Massive columns adorn the front porch as you enter the home, and extra details continue to impress. A two-sided fireplace defines the spacious great room where a hearth is located opposite to warm the kitchen. Here you’ll love the large center island and access to the adjacent dining area. The bedrooms are all located to the left of the entry and include a spacious master suite with walk-in closet, dual sinks and Jacuzzi tub. The two additional bedrooms have direct access to the full bath just off the hall. A three-stall garage completes this home.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

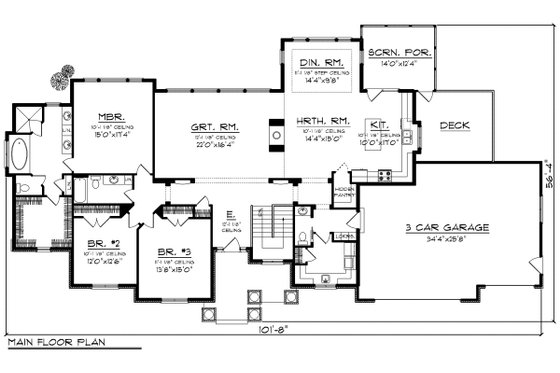

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program


Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 1
Garages: 3


Depth : 56' 4"
Height : 29' 9"
Width : 101' 8"


Total : 2687 sq/ft
First Floor: 2687 sq/ft height 10'
Garage: 835 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Ceiling Details : Entry/Grt Rm 12', Din Rm 11' Step, Bdrm #3 11'
Lower Ceiling : 9'
Main Ceiling : 10'


Primary Pitch : 12:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Stone, Shake, Siding
Framing : 2x6

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Unfinished Future Space

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Screened Porch


Bedroom 2:

width 12' x depth 12' 6"

Bedroom 2 Closet:

width 8' 10" x depth 2' 1"

Bedroom 3:

width 13' 8" x depth 15'

Bedroom 3 Closet:

width 5' 9" x depth 2' 1"

Dining Room:

width 14' 4" x depth 9' 8"


width 7' 4" x depth 8' 1"

Front Porch:

width 18' 4" x depth 13' 8"


835 sq/ft width 34' 4" x depth 25' 8"

Great Room:

width 22' x depth 16' 4"


width 6' 6" x depth 4' 1"

Hall Bath:

width 11' 2" x depth 5' 5"

Hall Closet 1:

width 3' 1" x depth 2' 1"

Hall Closet 2:

width 2' 1" x depth 3' 1"

Hearth Room:

width 14' 4" x depth 15'


width 10' x depth 17'

Laundry Room:

width 9' 4" x depth 8'

Master Closet:

width 10' 8" x depth 9' 7"

Master Bath:

width 10' 8" x depth 16' 10"

Master Bedroom:

width 15' x depth 17' 4"

Mud Room:

width 8' 2" x depth 5' 11"


width 4' 4" x depth 6' 7"

Powder Room:

width 3' 1" x depth 7' 6"

Rear Deck:

width 15' x depth 13' 8"

Screened Porch:

width 14' x depth 12' 4"

What's included in this plan set

See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
