Plan 84-527

Photographs may show modified designs.
Plan 84-527

Key Specs


2689
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

Plan Description


Plan has a large open living & dining area geared for entertaining. 2 bedrooms share a bath & separate bedroom has it's own private hall & bath. Oversized master suite has luxurious features: generous vanities, 2 person shower & closets you can get lost in. 3 car garage is located in front to fit a narrow lot, & the stone & arch window details add personality to the exterior.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

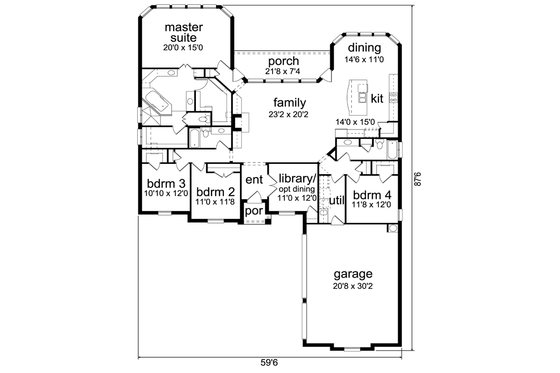

Floor Plan - Main Floor Plan

Reverse
Traditional Floor Plan - Main Floor Plan Plan #84-527

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 1
Garages: 3

Dimension

Depth : 87' 6"
Height : 24' 11"
Width : 59' 6"

Area

Total : 2689 sq/ft
First Floor: 2689 sq/ft
Garage: 702 sq/ft
Porch: 182 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 9'
Main Ceiling : 9'

Roof

Primary Pitch : 8:12
Roof Framing : stick
Roof Type : gable
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : brick, stone
Framing : 2"x4"

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Family Room Keeping Room

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Code Compliance

Irc 2003

Rooms

Bedroom 2:

128 sq/ft width 11' x depth 11' 8"

Bedroom 3:

129 sq/ft width 10' 10" x depth 12'

Bedroom 4:

140 sq/ft width 11' 8" x depth 12'

Dining Room:

159 sq/ft width 14' 6" x depth 11'

Family Room:

467 sq/ft width 23' 2" x depth 20' 2"

Garage:

623 sq/ft width 20' 8" x depth 30' 2"

Kitchen:

210 sq/ft width 14' x depth 15'

Library:

132 sq/ft width 11' x depth 12'

Master Suite:

300 sq/ft width 20' x depth 15'

Porch - Rear:

158 sq/ft width 21' 8" x depth 7' 4"

What's included in this plan set


See a sample plan set
  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

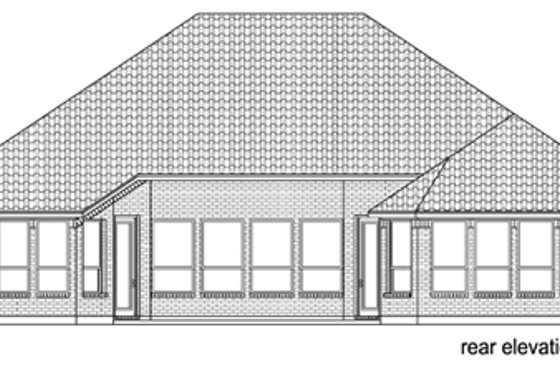

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$885.00
5 printed plan sets mailed to you.

8 Copy Set

$960.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1075.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1130.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1865.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$825.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$60.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
