A perfect vacation home this plan packs everything imaginable into a small footprint. The lower level entrance accessed from the drive or garage welcomes you into the foyer equipped with elevator and ample storage. A second floor houses the everyday living area complete with kitchen, additional guest suite or office, and dining. The favorite part of this floor is the expansive glass which leads you out under a covered porch to the pool and sun deck. The third floor is for sleeping. Two additional bedrooms with shared bath are next to the laundry and mechanical closet. A master suite occupies the water facing view complete with soaking tub, his and her vanities, walk-in closet, and private balcony. The optional bonus room in the attic can be anything imaginable including exercise, kids retreat, bunk room, or studio.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

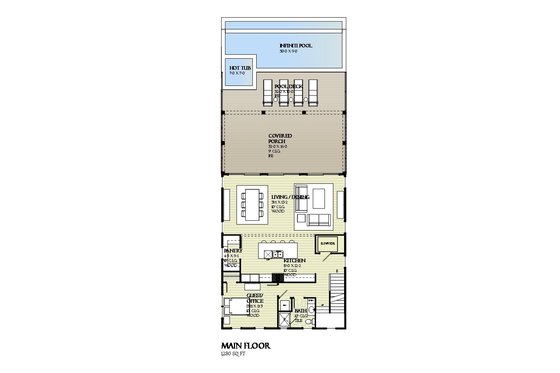

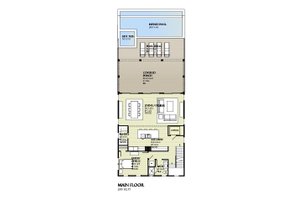

Floor Plan - Main Floor Plan

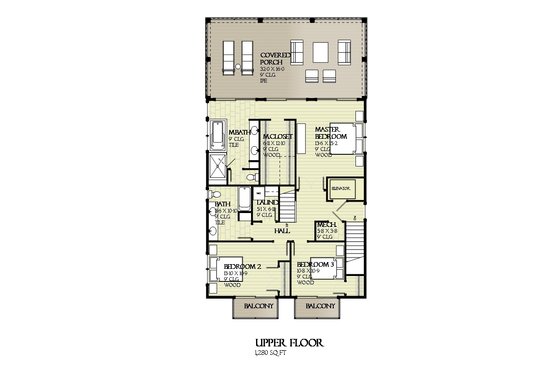

Floor Plan - Upper Floor Plan
Floor Plan - Main Floor Plan

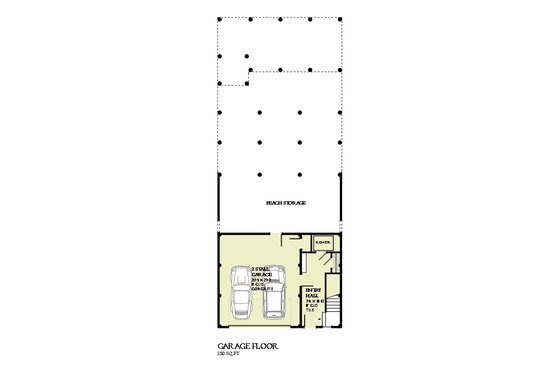

Floor Plan - Lower Floor Plan
Full Specs & Features
Depth : 56'
Height : 44' 5"
Lower Floor : 250 sq/ft
Main Floor : 1280 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Lower Ceiling : 8'
Main Ceiling : 10'
Main Floor Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Unfinished Future Space
Front Entry Garage
Suited For Narrow Lot
Suited For Sloping Lot
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Economical To Build
Energy Efficient Features
What's included in this plan set
See a sample plan set
*See important information before purchasing
Title Sheet. This page includes a color rendering of your home and an overview of the floor plan.
Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

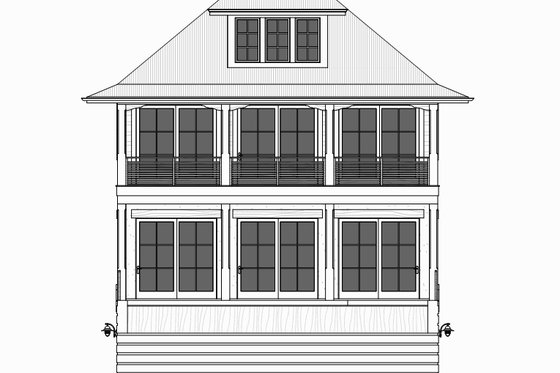

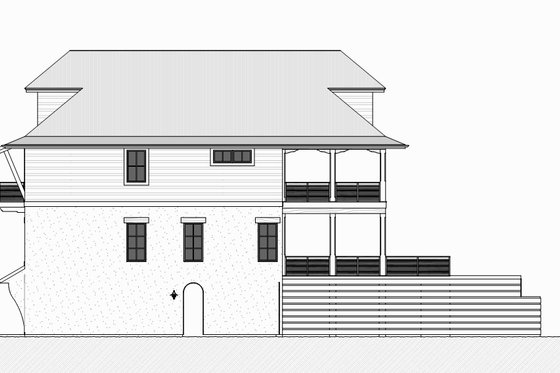

Exterior Elevations. Front, rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material callouts, eave detail, roof pitch and foundation construction.
Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
