Plan 1042-9

Key Specs

Plan Sq Ft

sq ft

Plan Bedrooms


Plan Bathrooms


Plan Floors


Plan Garages


Plan Description

This elegantly simple Italian Country design is economical to build and beautiful to own. The sunny first floor has 9 ft. ceilings and tall windows. The rooms flow easily one into another for graceful entertaining. The Living room features a fireplace and built-in entertainment center. Classical columns lead into the coffered dining room and to the kitchen with a breakfast bar. The Den is perfect for a variety of uses, from guest room to home office. The mud and laundry room are conveniently and functionally arranged to support a busy family. The oversized garage can hold all your storage needs. Upstairs find four well proportioned bedrooms with gently vaulted ceilings. The three kid’s bedrooms have a variety of amenities like private bathrooms, walk-in closets and built-in storage shelves. The Master bedroom has its own romantic wrought-iron Juliet balcony, a 5 piece master bathroom and large walk-in closet. For the basement option: The huge basement has nine foot ceilings and three large window wells.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

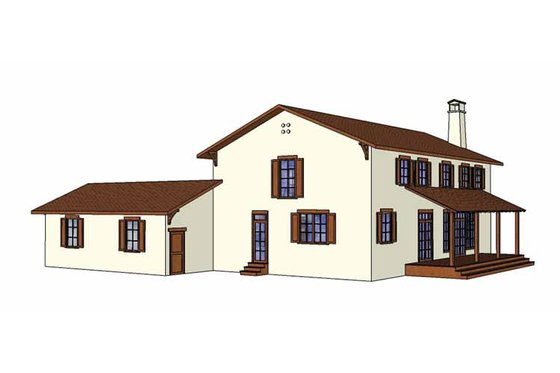

Floor Plan - Other Floor

BUILDER Advantage Program


Join the club and save 5% on your first order plus exclusive discounts and more.


Click to Get Your Trend Report

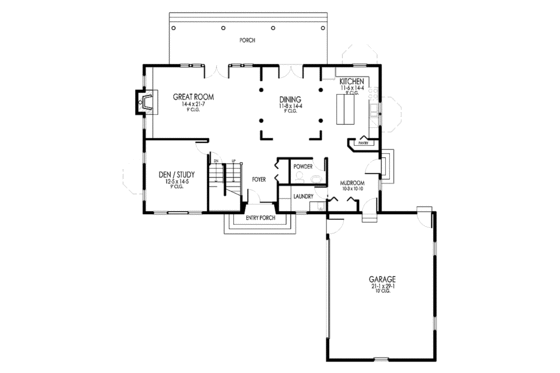

Floor Plan - Main Floor

Floor Plan - Upper Floor

Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 2


Depth : 69' 11"
Height : 27' 9"
Width : 62' 10"


Total : 2865 sq/ft
First Floor: 1430 sq/ft
Second Floor: 1435 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Clay Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Wood - 2x6

Bedroom Features

Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Mud Room
Open Floor Plan
Unfinished Future Space

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Rear Porch


Bathroom 2:

40 sq/ft width 8' x depth 5'

Bathroom 3:

90 sq/ft width 7' 10" x depth 11' 7"

Bedroom 2:

156 sq/ft width 12' 5" x depth 12' 7"

Bedroom 2 Closet:

20 sq/ft width 4' 2" x depth 5'

Bedroom 3:

149 sq/ft width 10' 11" x depth 13' 8"

Bedroom 3 Closet:

12 sq/ft width 6' x depth 2' 1"

Bedroom 4:

186 sq/ft width 11' 7" x depth 16' 1"

Bedroom 4 Closet:

49 sq/ft width 8' 4" x depth 6'

Coat Closet:

10 sq/ft width 5' x depth 2' 1"


177 sq/ft width 12' 4" x depth 14' 5"

Dining Room:

167 sq/ft width 11' 8" x depth 14' 4"


61 sq/ft width 7' x depth 8' 10"


613 sq/ft width 21' 1" x depth 29' 1"

Great Room:

309 sq/ft width 14' 4" x depth 21' 7"


164 sq/ft width 11' 6" x depth 14' 4"

Laundry Room:

50 sq/ft width 9' 7" x depth 5' 3"

Master Bathroom:

138 sq/ft width 13' 7" x depth 10' 2"

Master Bedroom:

228 sq/ft width 13' 5" x depth 17'

Master Closet:

66 sq/ft width 10' 2" x depth 6' 6"

Master Closet Two:

8 sq/ft width 4' x depth 2' 1"

Mud Room:

111 sq/ft width 10' 3" x depth 10' 10"


12 sq/ft width 6' x depth 2' 1"

Powder Room:

35 sq/ft width 7' 2" x depth 5'

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

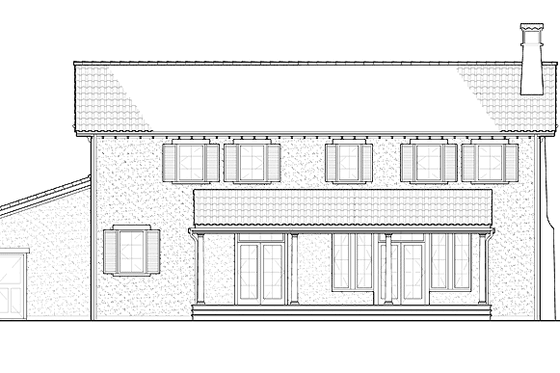

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
