Plan 17-1028

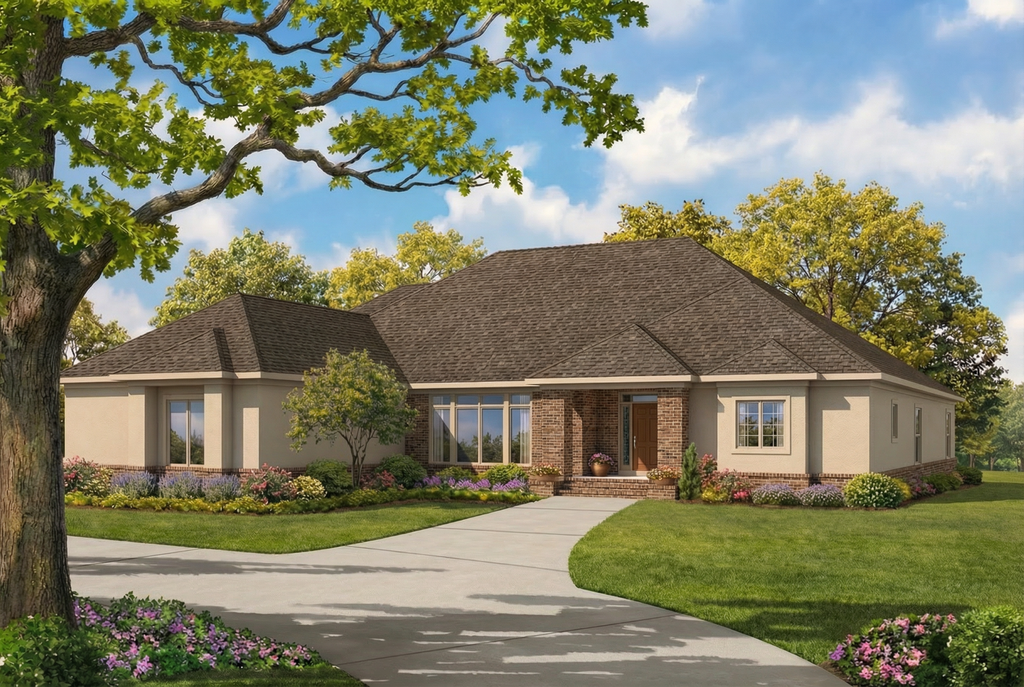

Photographs may show modified designs.
Plan 17-1028

Plan Description

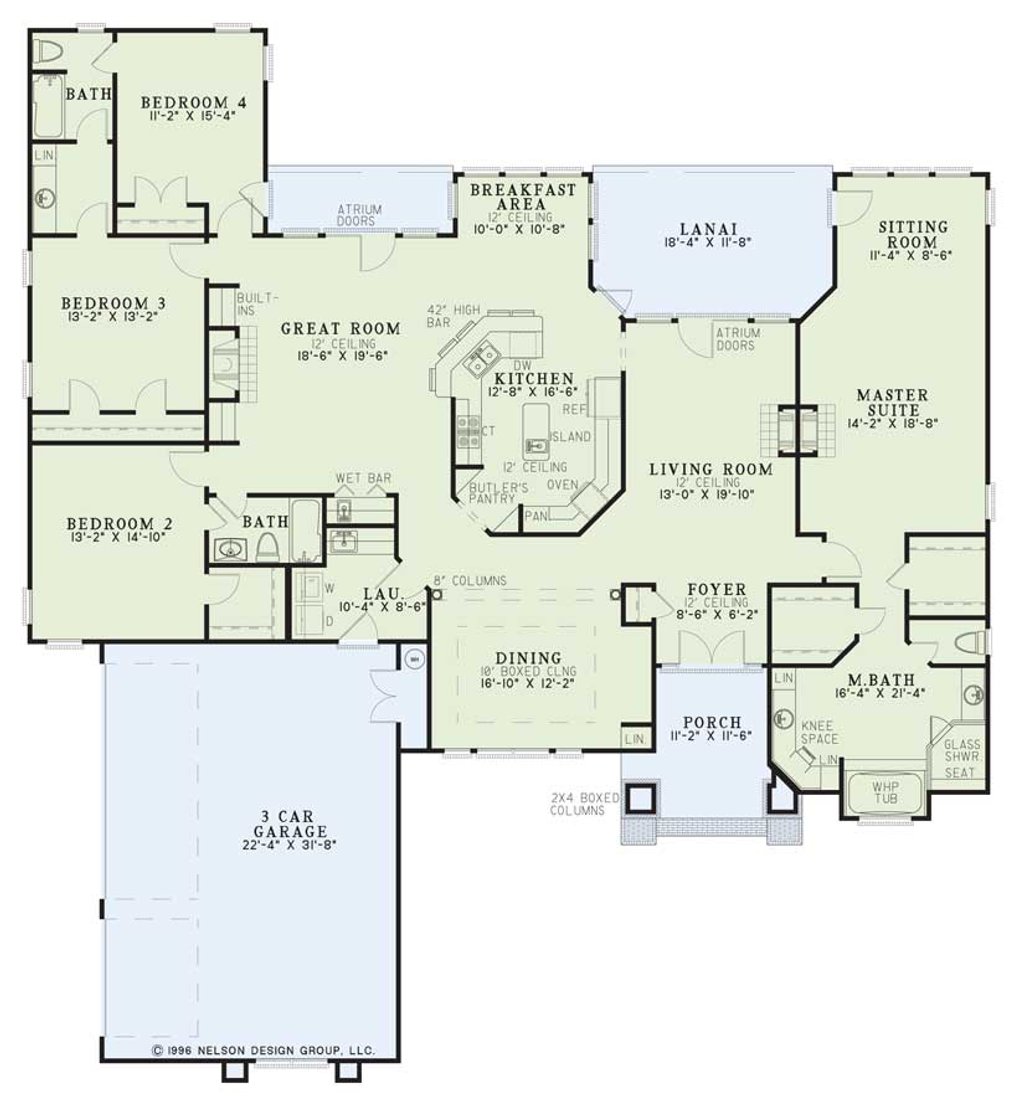

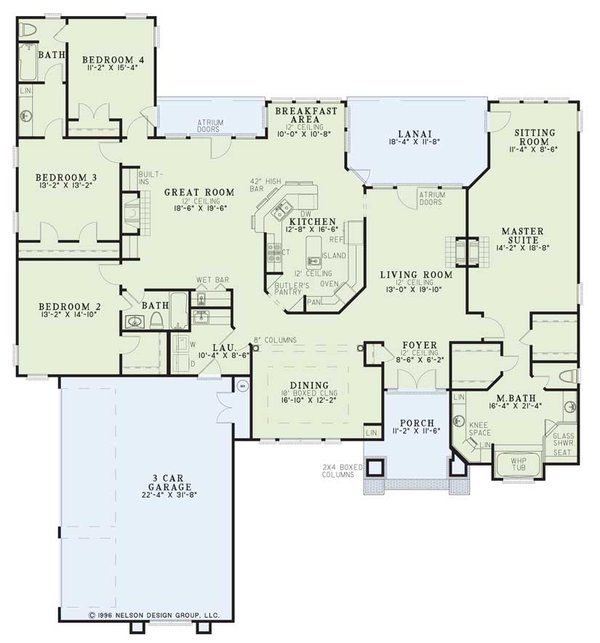

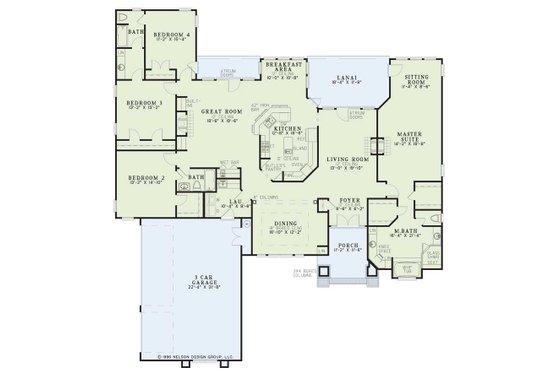

This sprawling four-bedroom plan centers on an ultra functional kitchen accessing all living areas with ease. A handy eat-at bar and island help make this kitchen any gourmet’s dream. Separate living and great rooms each feature gas fireplaces and lots of open space. All three secondary bedrooms feature private bath entrances. The exquisite master suite presents a radiant fireplace, large sitting area, private entrance to the lanai and a massive bath that includes his and her walk-in closets and an oversized whirlpool tub. Basement stairs location - Inside Garage adjacent to bedroom #2 wall and laundry with entrance to basement next to door to the laundry rm. Garage gets bumped out 4 feet as a result. Ceilings 9 ft Entry porch with boxed columns French doors to Foyer with 12 ft ceiling Open floor plan Dining room with 8 inch columns and 10 ft boxed ceiling Living room with 12 ft ceiling and fireplace. with atrium doors to Lanai Master suite with fireplace and sitting area accesses Lanai Master bath with h/h closets, whirlpool tub. Glass shower and makeup area Kitchen with 12 ft ceiling, island and eat at bar -Butler's pantry Breakfast area with 12 ft ceiling Great room with wet bar, gas fireplace, built-ins and atrium doors to rear porch Bedroom 3 and 4 share bath access bedroom 4 to Rear porch Master Closet left- 6'4" x 5'10" right 5'10" x6'0" BR 2 closet- 5'10" x 5'6" BR 3 closet- 13'2" x 2'0" BR 4 closet- 6'8" x 2'0" Exterior Material: Stucco
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 3
Stories: 1
Garages: 3


Depth : 81'
Height : 24'
Width : 74'


Total : 2951 sq/ft
Garage : 707 sq/ft
Main Floor : 2951 sq/ft
Porch : 444 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Main Ceiling : 9'


Primary Pitch : 8:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island

Additional Room Features

Family Room Keeping Room
Great Room Living Room
Master Sitting Area
Storage Area

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Rear Porch


Jack & Jill Bath

What's included in this plan set

See a sample plan set
  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

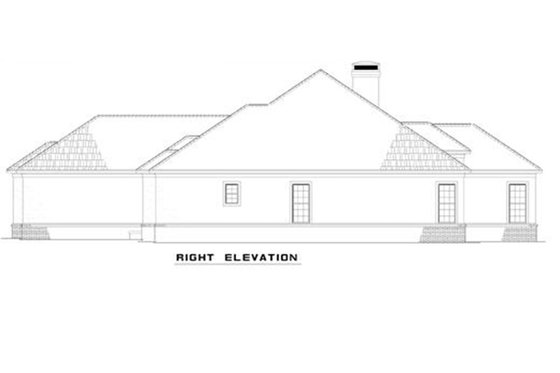

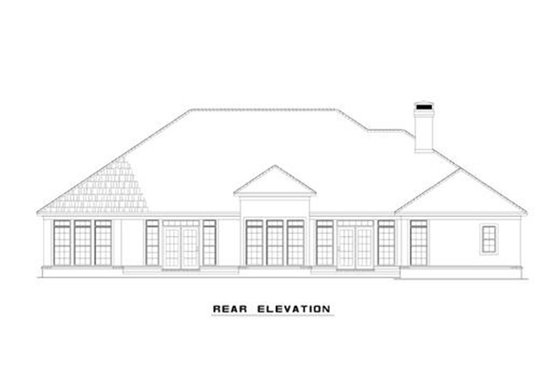

  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*See important information before purchasing


Plan Options


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

5 printed plan sets mailed to you.

5 Copy and PDF Set

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Ideal for level lot, single layer concrete poured directly on grade.


Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

Ideal for sloping lot, lower level of home partially underground.

Wood 2x4

Wood 2x4

Wood 2x6

Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
