Plan 477-7

Photographs may show modified designs.
Plan 477-7

Key Specs


3000
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

Plan Description


This traditional house plan features large open rooms with lots of natural light thanks to numerous large windows, and high ceilings. The Library could be used as either a formal living or dining room. All four bedrooms are located have windows on two walls to allow for natural cross-ventilation. The wide front porch is practical and inviting. After entering through a pair of 8-0 tall entry doors you are drawn into a grand Foyer featuring a sculptural staircase. To one side of the Foyer is the Library; to the other is the Great Room, a truly oversized space with a central fireplace.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

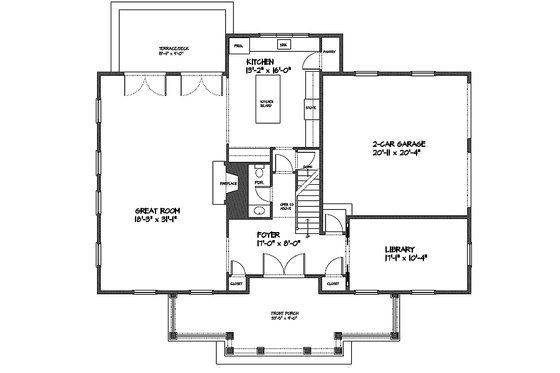

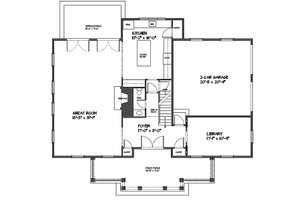

Floor Plan - Main Floor Plan

Reverse
Classical Floor Plan - Main Floor Plan Plan #477-7

Floor Plan - Upper Floor Plan

Reverse
Classical Floor Plan - Upper Floor Plan Plan #477-7

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 2

Dimension

Depth : 52'
Height : 33'
Width : 54'

Area

Total : 3000 sq/ft
Basement : 1250 sq/ft
Decks : 140 sq/ft
Garage : 436 sq/ft
Main Floor : 1261 sq/ft
Porch : 235 sq/ft
Upper Floor : 1739 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 12'
Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 7:12
Roof Framing : stick
Roof Load : 40
Roof Type : hipped
Secondary Pitch : 3:12

Exterior Wall Framing

Exterior Wall Finish : wood siding
Framing : 2"x6"
Insulation : 19
Seismic Rating : 2
Wind Rating : 110

Bedroom Features

Guest Suite
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Upstairs Laundry

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Balcony
Covered Front Porch
Grill Deck Sundeck

More

Economical To Build
Jack & Jill Bath

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Notes

Energy Efficient Features

Green Specifications

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

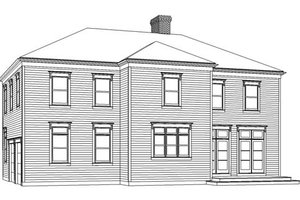

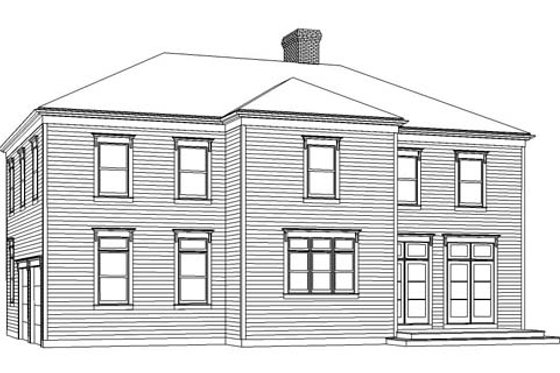

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1200.00
5 printed plan sets mailed to you.

8 Copy Set

$1500.00
8 printed plan sets mailed to you.

Reproducible Set

$1800.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

PDF Set

Best Value!
$2000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Single Set

$820.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$50.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement

$150.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$80.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
