Plan 70-1181

Photographs may show modified designs.
Plan 70-1181

Plan Description


Inspired by the English Tudor home of years gone by, this two-story charmer is sure to be a best seller. A barrel vault ceiling will entice you to enter and double French doors will further impress you on your left leading to the den. The kitchen, great room and dining room were carefully designed to create as big of living area as possible while still leaving room for a mother-in-law’s suite to the right of the entry. Upstairs you discover four bedrooms including a master suite with walk-in closet, dual sinks and easy access to laundry. Three additional bedrooms, two with walk-in closets, make this home an excellent choice for large families. A three-stall side load garage completes this home.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 4
Stories: 2
Garages: 3

Dimension

Depth : 53' 8"
Height : 32' 7"
Width : 60'

Area

Total : 3103 sq/ft
First Floor: 1582 sq/ft height 9' 1"
Garage: 803 sq/ft
Second Floor: 1521 sq/ft height 8' 1"
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Entry Barrel Vault, Bdrm 4 Cathedral
Lower Ceiling : 9'
Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Stucco, Stone, Siding
Framing : 2x6

Bedroom Features

Guest Suite
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Mud Room
Unfinished Future Space
Upstairs Laundry

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Rooms

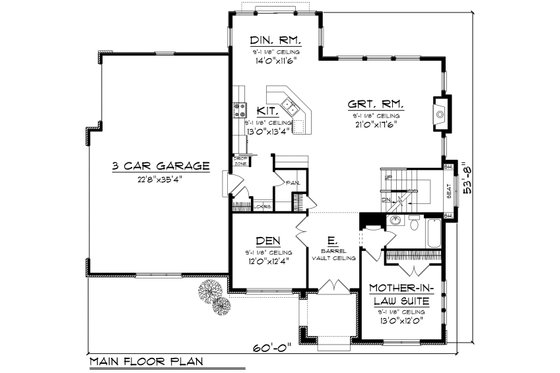

Bedroom 2:

width 14' 4" x depth 12' 6"

Bedroom 2 Bath:

width 5' x depth 8' 1"

Bedroom 2 Closet:

width 5' 2" x depth 4' 2"

Bedroom 3:

width 12' x depth 13'

Bedroom 3 Closet:

width 7' 1" x depth 2' 1"

Bedroom 4:

width 13' x depth 14'

Bedroom 4 Closet:

width 9' x depth 6'

Computer Nook:

width 6' 1" x depth 4' 7"

Covered Front Porch:

width 9' 8" x depth 8' 8"

Den:

width 12' x depth 12' 4"

Dining Room:

width 14' x depth 11' 6"

Foyer:

width 8' 4" x depth 12' 4"

Garage:

803 sq/ft width 22' 8" x depth 35' 4"

Great Room:

width 21' x depth 17' 6"

Hall 1:

width 3' 9" x depth 8' 5"

Hall 2:

width 10' 9" x depth 4' 6"

Hall Bath:

width 9' x depth 5' 7"

Hall Closet 1:

width 3' 1" x depth 2' 1"

Hall Closet 2:

width 2' 1" x depth 2' 10"

In-Law Bath:

width 8' 4" x depth 7'

In-Law Suite:

width 13' x depth 12'

In-Law Suite Closet:

width 9' x depth 2' 1"

Kitchen:

width 13' x depth 13' 4"

Laundry Room:

width 5' 7" x depth 7' 10"

Master Closet:

width 11' 1" x depth 5' 7"

Master Bath:

width 10' x depth 10' 2"

Master Bedroom:

width 14' x depth 15'

Mud Room:

width 6' 7" x depth 6' 6"

Pantry:

width 5' 2" x depth 6' 9"

What's included in this plan set


See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$945.20
5 printed plan sets mailed to you.

8 Copy Set

$984.30
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1187.45
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1187.45
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1890.40
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$284.75
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$284.75
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$284.75
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$55.25
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$85.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$170.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$46.75
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
