This modern home features an updated open concept floor plan with a mother-in-law’s suite located just off the entry to the left. • The formal dining area is found off the right of the entry and is accessed from the kitchen through a butler’s pantry. • The spacious kitchen is a chef’s dream with large central island and access to both the formal dining room and everyday nook. • The large great room includes a central fireplace flanked by windows that allow natural light into the living area. • The master suite is located upstairs and is sure to please mom with a step ceiling, dual sinks and spacious walk-in closet. • Two additional bedrooms, a loft, full bath and laundry are also located on the second floor.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

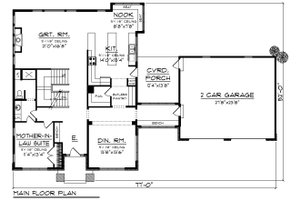

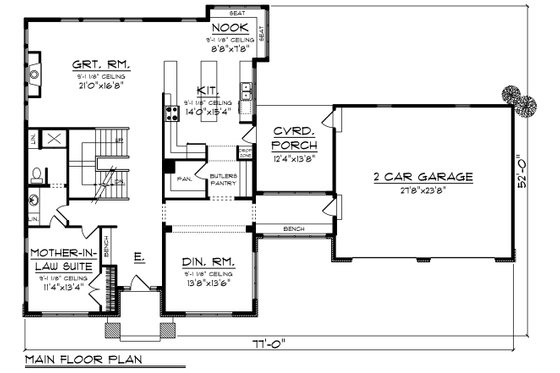

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Depth : 52'
Height : 24' 8"
Garage : 687 sq/ft
Main Floor : 1789 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : MBR 9' Step.
Main Ceiling : 9'
Primary Pitch : 4:12
Roof Framing : Truss
Roof Load : 47 lbs psf
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Stucco. Horizontal Siding. Stone.
Framing : 2x6
Main Floor Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Covered Front Porch
Covered Rear Porch
