Plan 70-1142

Photographs may show modified designs.
Plan 70-1142

Key Specs

Plan Sq Ft

sq ft

Plan Bedrooms


Plan Bathrooms


Plan Floors


Plan Garages


Plan Description

Tuscan in design, this ranch features a traditional plan with extra details that are sure to please, beginning with a curved staircase leading to the lower level just to the right of the entry. The great room directly ahead, and the dining room to the left of the entry are both defined by gracious columns that carry you into the main living area of the home. The kitchen, hearth room and nook are combined into an open floor plan concept to create a large daily living area while still having access to the great room. A spacious master suite includes double French doors that lead to a private deck, Jacuzzi tub and spacious walk-in closet. A second bedroom is tucked behind the garage and has a private bath. A five-stall, split-load garage provides ample parking and storage space.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

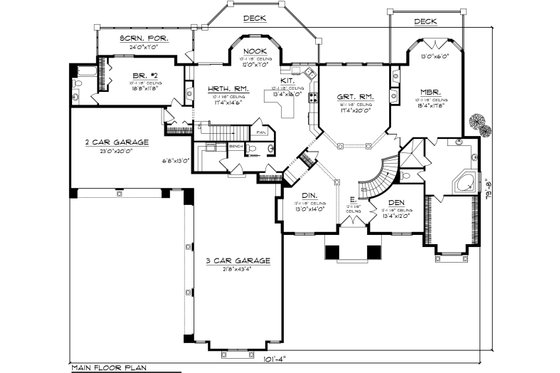

Floor Plan - Main Floor


BUILDER Advantage Program


Join the club and save 5% on your first order plus exclusive discounts and more.


Click to Get Your Trend Report

Full Specs & Features

Basic Features

Bedrooms : 2
Baths : 2.5
Stories: 1
Garages: 5


Depth : 79' 8"
Height : 23'
Width : 101' 4"


Total : 3214 sq/ft
First Floor: 3214 sq/ft
Garage: 1495 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Ceiling Details : 10'. Din/Den 12', Grt Rm 16'
Lower Ceiling : 10'


Primary Pitch : 6:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Tile
Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : 2x6

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Unfinished Future Space

Garage Features

Oversized Garage
Split Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Screened Porch


2 Car Garage:

width 23' x depth 20'

3 Car Garage:

width 21' 8" x depth 43' 4"

Bath 2:

61 sq/ft width 6' 4" x depth 9' 8"

Bedroom 2:

218 sq/ft width 18' 8" x depth 11' 8"

Bedroom 2 Closet:

16 sq/ft width 2' x depth 8'

Breakfast Nook:

94 sq/ft width 12' x depth 7'

Covered Front Porch:

107 sq/ft width 13' 4" x depth 8'

Covered Rear Porch:

168 sq/ft width 24' x depth 7'


465 sq/ft width 31' x depth 15'


160 sq/ft width 13' 4" x depth 12'

Dining Room:

182 sq/ft width 13' x depth 14'


48 sq/ft width 8' x depth 6'

Garage Storage:

87 sq/ft width 6' 8" x depth 13'

Great Room:

346 sq/ft width 17' 4" x depth 20'


27 sq/ft width 6' 4" x depth 4' 4"

Hall Closet 1:

13 sq/ft width 6' 4" x depth 2'

Hall Closet 2:

11 sq/ft width 5' 8" x depth 2'

Hearth Room:

251 sq/ft width 17' 4" x depth 14' 6"


width 13' 4" x depth 16'

Laundry Room:

57 sq/ft width 8' 2" x depth 7'

Master Bath:

267 sq/ft width 19' 4" x depth 13' 10"

Master Bedroom:

271 sq/ft width 15' 4" x depth 17' 8"

Master Closet:

181 sq/ft width 13' x depth 13' 11"

Master Sitting Area:

78 sq/ft width 13' x depth 6'

Mud Room:

14 sq/ft width 4' x depth 3' 6"


22 sq/ft width 6' x depth 3' 8"

Powder Room:

21 sq/ft width 7' x depth 3'

Screened Porch:

width 24' x depth 7'

What's included in this plan set

See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
