Plan Description


Modern open concept floorplan for today’s growing family. Note the in-law suite (or study/den) and large kitchen and dining space on the first floor, as well as the upper level loft. Optional third floor.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

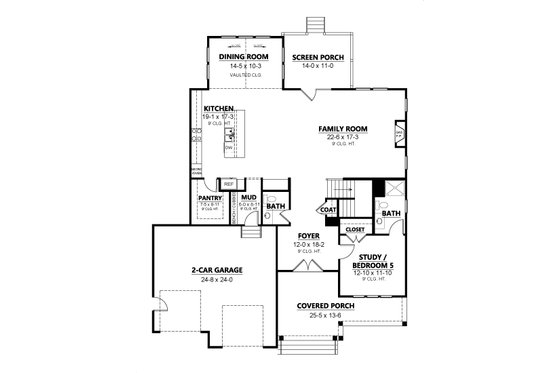

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

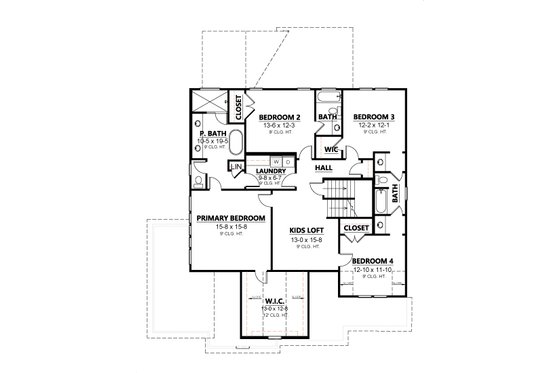

Floor Plan - Upper Floor

Reverse

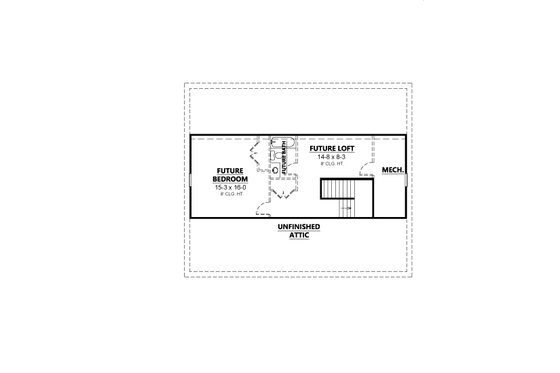

Floor Plan - Other Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 4.5
Stories: 2
Garages: 2

Dimension

Depth : 61' 4"
Height : 38' 10"
Width : 50' 1"

Area

Total : 3337 sq/ft
Garage : 558 sq/ft
Main Floor : 1581 sq/ft
Porch : 149 sq/ft
Third Floor : 509 sq/ft
Upper Floor : 1756 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 10/12
Roof Type : Engineered
Secondary Pitch : 18/12

Exterior Wall Framing

Framing : 2x4

Bedroom Features

Main Floor Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Loft
Unfinished Future Space
Upstairs Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Screened Porch

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include:

  • Cover Sheet, Index of Sheets and Floor and Wall Framing notes and square footage for this house.

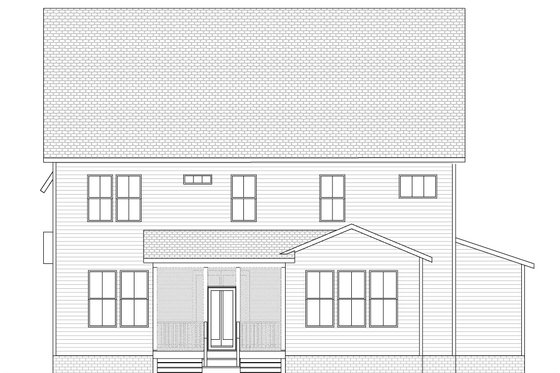

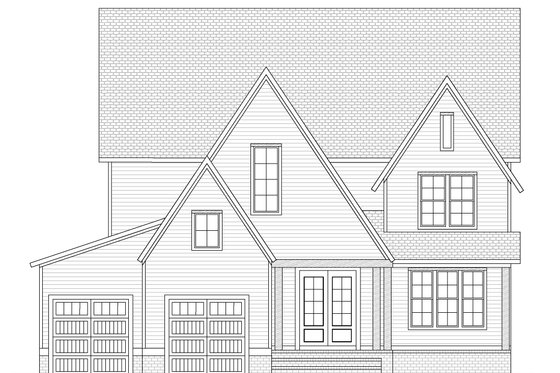

  • Exterior Elevations: a blueprint picture of all 4 sides drawn in ¼” scale, showing exterior materials and floor measurements. There may be additional illustrations with measurements of special features.
  • Foundation Page: Drawn to ¼” scale, this page shows all necessary notations and dimensions including footing locations, pads, and support walls with excavated and unexcavated areas.
  • Floor Plan(s): Detailed plans drawn to ¼” scale for each level showing room dimensions, window and door sizes, bearing walls and beam locations and bearing points.
  • Roof layout: Detailing what is Engineered Trussed, stick built and any build overs. There may be additional illustrations with measurements of special features.
  • Cross sections: Illustrates a vertical cutaway view of the house from roof down to foundation. These wall sections specify construction and building materials. The number of stories, floor heights, framing details, and the flow of bearing points down to the foundation.
  • Trim detail: Illustrates where crown moulding and wainscotting are located in the house. Additional illustrations of special features may be included. Cabinet designs are not included, since most people visit with a cabinet supplier for their unique needs. Room sizes can be referenced back on the Floor Plan for the opening sizes.
  • Electrical Layout: Is an illustration of where light switches and outlets are located, for a homeowner perspective. The illustration does not conform to the Electrical Standard symbols on the plan, but is a more simplified version for a homeowner understanding.
  • *See important information before purchasing
