This urban triplex with the brick and concrete façade consists of three apartments – one with three and a half rooms, one with six and a half rooms, and one with five and a half rooms – and provides a total of 3,456 square feet of living space. Each open concept unit has a back balcony accessible through the kitchen. The three and a half room apartment includes a kitchen with a lunch counter, a dining room, a living room, a bathroom, a laundry closet, and a bedroom. The five and a half room apartment has the same rooms, but includes three bedrooms. The six and a half room apartment has an additional room in the basement.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

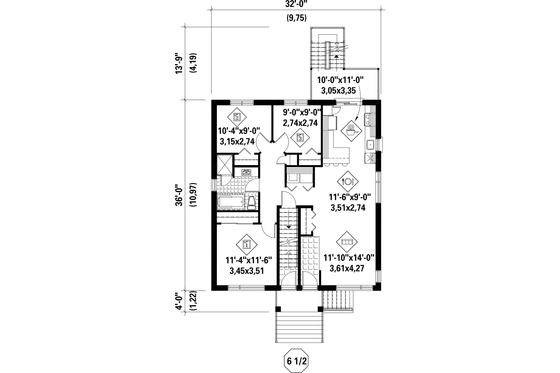

Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Floor Plan - Lower Floor Plan
Full Specs & Features
Depth : 36'
Height : 32' 10"
Basement : 0 sq/ft
Garage : 0 sq/ft
Lower Floor : 1152 sq/ft
Main Floor : 1152 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6/12
Roof Framing : Truss
Roof Load : 50
Secondary Pitch : 6/12
Exterior Wall Framing
Exterior Wall Finish : Brick Stone
Framing : Wood - 2 x 6
