This plan has every feature available in a compact footprint, designed for waterfront living. The main level has access to outdoor living in many areas from a rear covered porch to large screened in area. The open kitchen, dining, and living are great for entertaining while keeping a separate main floor master complete with patio very private. The second floor is where you will find additional bedrooms, bath, laundry, and a spacious family room great for grown children. Also don’t miss another opportunity to bring the outdoors in with an open sun deck. The third floor has two functions: sleeping bunks for all the kids, and an entertaining deck with viewing tower for the adults.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

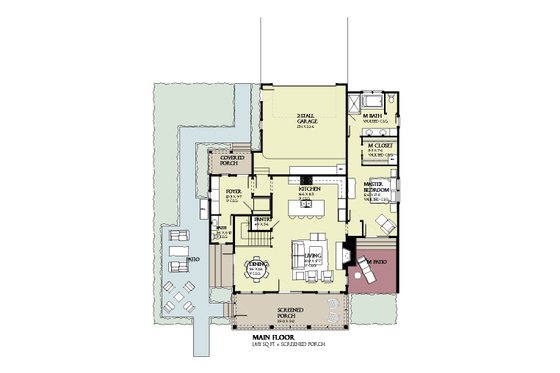

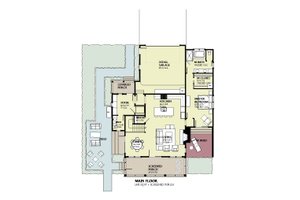

Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan

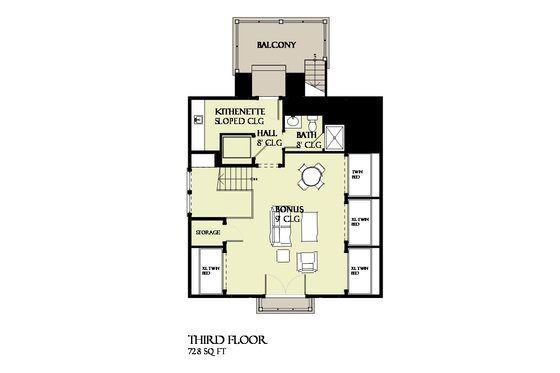

Floor Plan - Other Floor Plan
Full Specs & Features
Bonus : 728 sq/ft
Main Floor : 1481 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Bonus Ceiling : 9'
Main Ceiling : 9'
Primary Pitch : 10/12
Roof Framing : truss
Main Floor Master Bedroom
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Master Sitting Area
Play Flex Room
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Jack & Jill Bath
Suited For Vacation Home
Two Family Home
What's included in this plan set
See a sample plan set
*See important information before purchasing
Title Sheet. This page includes a color rendering of your home and an overview of the floor plan.
Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

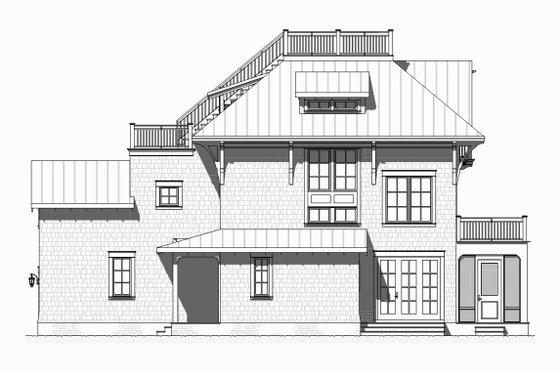

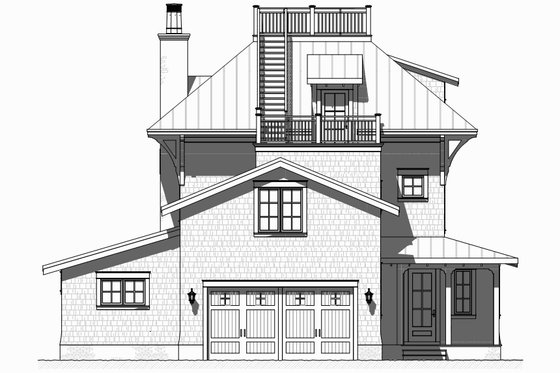

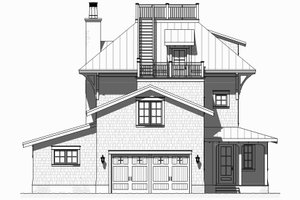

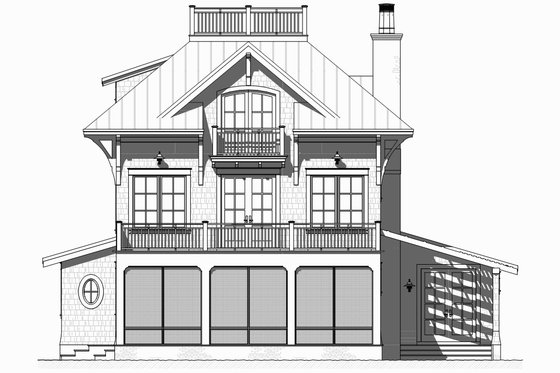

Exterior Elevations. Front, rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material callouts, eave detail, roof pitch and foundation construction.
Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
5 Copy Set
5 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set
8 printed plan sets mailed to you.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
*Options with a fee may take time to prepare. Please call to confirm.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
