Plan 117-271

Photographs may show modified designs.
Plan 117-271

Plan Description

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features

Basic Features

Bedrooms : 5
Baths : 3.5
Stories: 2
Garages: 3


Depth : 54' 8"
Height : 32' 1"
Width : 83' 10"


Total : 3492 sq/ft
First Floor: 1846 sq/ft
Second Floor: 1646 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Main Ceiling : 10'
Upper Ceiling Ft : 9'


Primary Pitch : 12:12
Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone
Framing : Log

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Storage Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch


Bedroom 2:

145 sq/ft width 14' 6" x depth 10'

Bedroom 3:

148 sq/ft width 14' 10" x depth 10'

Bedroom 4:

160 sq/ft width 11' 9" x depth 13' 8"

Bedroom 5:

160 sq/ft width 11' 9" x depth 13' 8"

Covered Porch:

260 sq/ft width 26' x depth 10'


139 sq/ft width 12' 6" x depth 11' 2"

Dining Room:

266 sq/ft width 18' x depth 14' 10"


677 sq/ft width 22' 10" x depth 29' 8"

Great Room:

542 sq/ft width 24' 8" x depth 22'


266 sq/ft width 18' x depth 14' 10"

Master Suite:

220 sq/ft width 17' 8" x depth 12' 6"

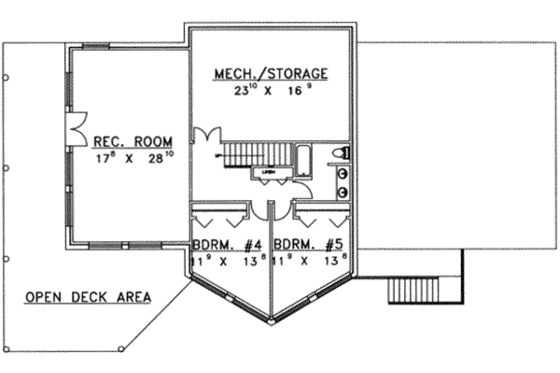

Recreation Room:

509 sq/ft width 17' 8" x depth 28' 10"


399 sq/ft width 23' 10" x depth 16' 9"

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing


Plan Options

Reproducible Set

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

5 Copy Set

5 printed plan sets mailed to you.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options

Daylight Basement

Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
