Plan 17-2621

Key Specs

3740
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description

Graceful columns line the covered front porch of this fine country mansion. A spacious foyer waits to greet both family and friends and leads to the formal dining room on the left and a master suite sitting/study area on the right. Toward the rear of the home resides the gourmet kitchen and adjacent hearth/breakfast room. Three bedrooms and two baths make up the second floor.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

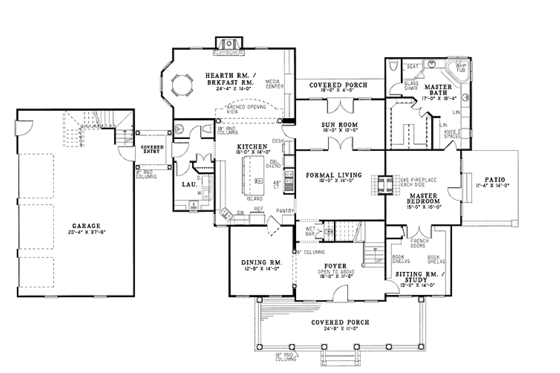

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

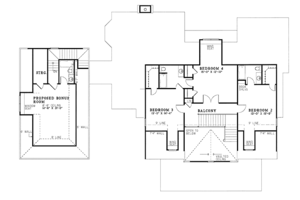

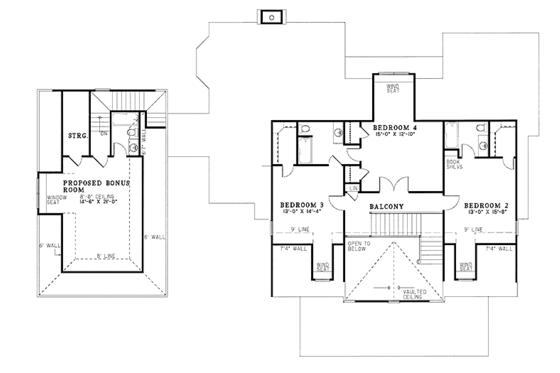

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 4.5

Stories: 2

Garages: 3

Dimension

Depth : 64'

Height : 31'

Width : 92' 5"

Area

Total : 3740 sq/ft

Bonus: 497 sq/ft

First Floor: 2651 sq/ft height 10'

Second Floor: 1089 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Split Bedrooms

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Sunroom

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Screened Porch

Rooms

Bedroom 2:

203 sq/ft width 15' 8" x depth 13'

Bedroom 3:

186 sq/ft width 14' 4" x depth 13'

Bedroom 4:

192 sq/ft width 12' 10" x depth 15'

Bonus Room - Finished:

304 sq/ft width 21' x depth 14' 6"

Dining Room:

168 sq/ft width 14' x depth 12'

Foyer:

210 sq/ft width 11' 8" x depth 18'

Game Room:

182 sq/ft width 14' x depth 13'

Garage:

878 sq/ft width 37' 8" x depth 23' 4"

Gathering Room:

340 sq/ft width 14' x depth 24' 4"

Kitchen:

224 sq/ft width 16' x depth 14'

Living Room:

252 sq/ft width 14' x depth 18'

Master Bedroom:

225 sq/ft width 15' x depth 15'

Porch - Front:

271 sq/ft width 11' x depth 24' 8"

Porch - Rear:

72 sq/ft width 4' x depth 18'

What's included in this plan set

See a sample plan set

Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
CAD Unlimited Build comes with a free PDF.
Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.

Pricing

Plan Options

PDF Set

Best Value!

$1350.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1450.00

5 printed plan sets mailed to you.

5 Copy and PDF Set

$1700.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Unlimited Build

$2050.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$2700.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

CAD Unlimited Build

$2700.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Crawlspace

$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement

$299.00

Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$299.00

Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00

Wood 2x4 Exterior Walls

Wood 2x6

$299.00

Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$299.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Roof Framing Detail

$149.00

Get a detailed plan for your roof framing.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
