Plan 70-1147

Photographs may show modified designs.
Plan 70-1147

Key Specs


3926
sq ft

3
Beds

2.5
Baths

2
Floors

4
Garages

Plan Description


A spacious front porch perfect for a swing adorns the front of this traditionally designed home. A two-story entry draws you in and continues directly ahead into the great room where a large wall of windows provides plenty of natural light. The adjacent kitchen features a large island that overlooks the dining area to create an open concept floor plan that most of today’s buyers prefer. The main floor master is located to the left of the great room and includes a monster walk-in closet and dual sinks. Upstairs, you’ll find two additional bedrooms, each with walk-in closet and easy access to the full bathroom. A four-stall, split-load garage sits at an angle and completes the home with a unique twist.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

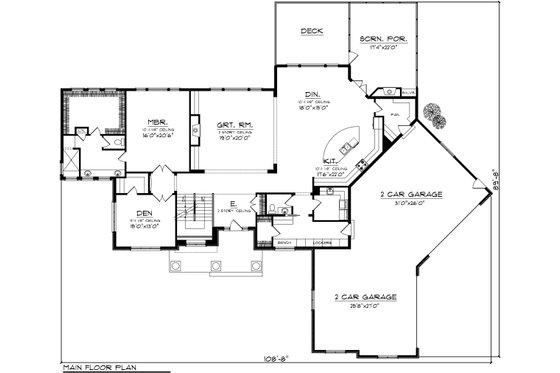

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 4

Dimension

Depth : 89' 8"
Height : 33' 1"
Width : 108' 8"

Area

Total : 3926 sq/ft
First Floor: 3017 sq/ft height 10' 1"
Garage: 1461 sq/ft
Second Floor: 909 sq/ft height 8' 1"
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 10'. Entry/Grt Rm 2-Story, Den 13' Flat
Lower Ceiling : 10'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Stone, Shake, Siding
Framing : 2x4

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Sunroom
Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Screened Porch

Rooms

Bedroom 2:

width 18' 6" x depth 13' 8"

Bedroom 3:

width 14' x depth 13' 4"

Den:

width 15' x depth 13'

Dining Area:

width 18' x depth 15'

Front Porch:

258 sq/ft

Garage 1:

width 25' 8" x depth 27'

Garage 2:

width 31' x depth 26'

Great Room:

width 19' x depth 20'

Kitchen:

width 17' 6" x depth 22'

Master Bedroom:

width 16' x depth 20' 6"

Screened Porch:

381 sq/ft width 17' 4" x depth 22'

What's included in this plan set


See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1610.00
5 printed plan sets mailed to you.

8 Copy Set

$1688.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$2120.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$2120.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$3376.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$295.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$295.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$40.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
