Plan 70-1067

Key Specs

Plan Sq Ft

sq ft

Plan Bedrooms


Plan Bathrooms


Plan Floors


Plan Garages


Plan Description

Traditional in style, but updated with today’s popular materials, this walkout ranch home is the perfect addition to your neighborhood. A uniquely detailed entry ceiling will impress you as you enter the home, where the den is located to the front on your right, and the great room lies directly ahead. A step ceiling and fireplace with built-ins will impress you as you encounter the main living area of the home. To your left, a kitchen with central island that provides extra seating as well as a view of the great room, and an adjacent dining room complete the area. The master suite lies to the right of the great room and includes a step ceiling, walk-in closet and on-suite bath. Downstairs you’ll be impressed with the use of space where you’ll find two additional bedrooms, a large family room, wet bar, and game room. A split-load, three-stall garage completes the home.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

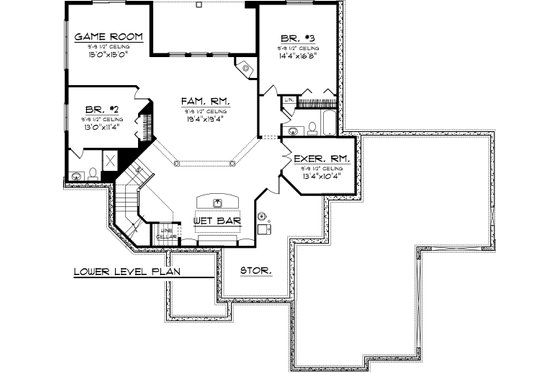

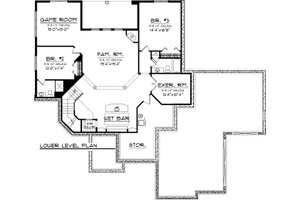

Floor Plan - Lower Floor


BUILDER Advantage Program


Join the club and save 5% on your first order plus exclusive discounts and more.


Click to Get Your Trend Report

Floor Plan - Main Floor


Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 1
Garages: 3


Depth : 68'
Height : 27' 10"
Width : 79' 4"


Total : 3999 sq/ft
Basement Living: 1796 sq/ft
First Floor: 2203 sq/ft
Garage: 1096 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Ceiling Details : Entry 13' Step, Great Room 14' Step, Den 12', Master Bedroom 11' Step
Main Ceiling : 10'


Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47
Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : stucco, stone
Framing : 2 x 6
Insulation : 19

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Storage Area
Wet Bar

Garage Features

Front Entry Garage
Side Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch



width 79' 4" x depth 68' 4"

Bath 2:

width 9' 3" x depth 5' 10"

Bathroom 2:

width 10' x depth 5'

Bathroom 3:

width 9' 3" x depth 5' 10"

Bedroom 2:

width 13' x depth 11' 4"

Bedroom 2 Closet:

width 7' 2" x depth 2' 1"

Bedroom 3:

width 14' 4" x depth 16' 8"

Bedroom 3 Closet:

width 2' 1" x depth 5'


width 13' x depth 14'


width 14' 8" x depth 13'

Exercise Room:

width 13' 4" x depth 10' 4"

Family Room:

width 19' 4" x depth 19' 4"


width 8' 10" x depth 15' 4"


width 24' 4" x depth 21'

Garage 2:

width 24' 4" x depth 21'

Half Bath:

width 6' 2" x depth 5'


width 14' 6" x depth 4'

Hall Bath:

width 10' x depth 5'


width 14' 8" x depth 14' 4"


width 5' 10" x depth 8' 2"

Master Bedroom:

width 15' x depth 16'

Master Walk In Closet:

width 7' 9" x depth 11'


width 8' x depth 5' 7"

Porch Front:

width 12' x depth 13'

Porch Rear:

width 19' 4" x depth 9' 8"

Powder Room:

width 6' 2" x depth 5'

Recreation Room:

width 15' x depth 15'


width 12' 8" x depth 9' 6"

Wet Bar:

width 13' 8" x depth 14' 8"

What's included in this plan set

See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*See important information before purchasing


Plan Options

5 Copy Set

5 printed plan sets mailed to you.

8 Copy Set

8 printed plan sets mailed to you.


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Daylight Basement

Ideal for sloping lot, lower level of home partially underground.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

Allows you to build one more home for each additional license purchased.

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License

Allows you to build this home as many times as you want.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
