Plan 17-240

Photographs may show modified designs.

Key Specs


Plan Sq Ft

4532
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

4.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options What's included?
$254.15
Additional Construction Sets$68.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

$85.00
$33.15
Subtotal
NOW $1317.50
You save $232.50
(15% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Questions? Get Personalized Help



Hours:  Mon‑Fri, 9 am‑8:30 pm (EST)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Plan 17-240

Key Specs


Plan Sq Ft

4532
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

4.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Plan Description


Enter through the brick arched entry of this home to find an elegant design where entertaining family and friends is fun and easy. Enjoy the coziness of the hearth room when family visits for the holiday. After the party ends, you’ll find comfort in the privacy on your secluded master suite with a sitting area or relax in your soothing whirlpool bath. Beautiful French doors welcome you to the lanai where mornings and afternoons are best enjoyed. Upstairs, you can start each day by exercising or end the day by entertaining in the game room. Comments: Main ceilings 10 ft-Upper 8 ft Front porch with 8 inch columns Covered entry with 12 inch columns Foyer with 12 ft ceiling Dining room with 8 inch columns and arched entry and 12 ft ceiling Living room with 12 ft ceiling, gas fireplace. and French doors to rear Lanai Study with bay window with 8 ft ceiling height and access to porch Master suite with French doors to and Lanai access with sitting area Master bath with h/h walk-in closets, step up whirlpool tub with 8 inch columns, glass block shower 8 inch columns to Breakfast room with 3 sided fireplace to Hearth room and French doors to Lanai Kitchen with island and desk area and bar hearth room shares fireplace Bedroom share access to bath Upper: Exercise room Game room with small kitchen area Attic storage Square Footage Floor1: 3732 Floor2: 800 Total: 4532 Garage Storage: 810 Porch: 636 Wall Construction: 2x4 Roof Framing: 2x6 Insulation Exterior Walls: R-13 Ceiling Minimum: R-30 Floor Minimum: R-19 Roof Designed Roof Load: 45-lbs. Psf lbs. psf Roof Pitch - Main: 10:12 Roof Pitch - Front Gable: 2:12 Roof Framing Description: Conventional Roof Type: Shingle Ceiling Height Main: 10 ft 0 inches Upper: 8 ft 0 inches
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

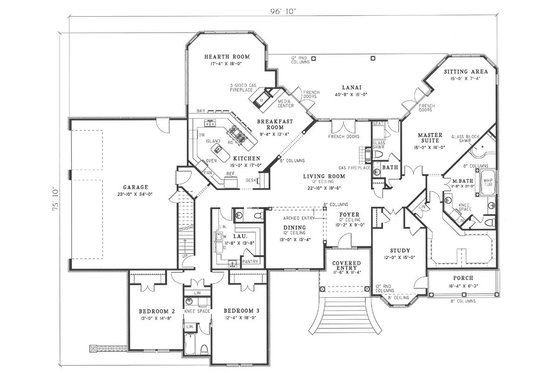

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 4.5
Stories: 2
Garages: 3

Dimension

Depth : 76'
Width : 97'

Area

Total : 4532 sq/ft
Main Floor : 3732 sq/ft
Upper Floor : 800 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Master Sitting Area
Play Flex Room
Storage Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Rear Porch

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set


  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (walk out is not shown on elevations unless finished walk out)
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

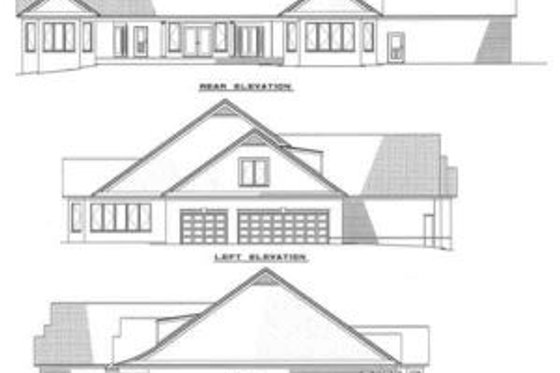

  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
