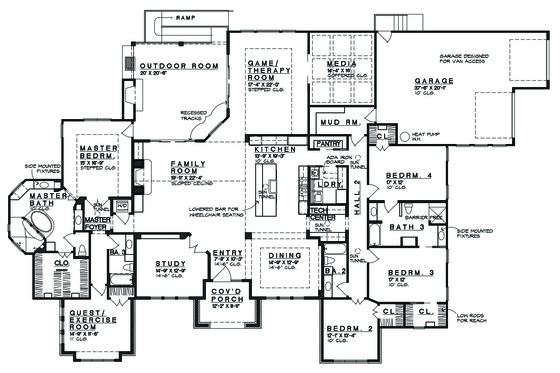

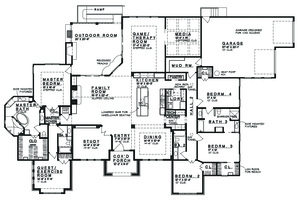

Floor Plan - Main Floor
BUILDER Advantage Program
Join the club and save 5% on your first order plus exclusive discounts and more.
JOIN FOR FREE
Click to Get Your Trend Report
Full Specs & Features
Depth : 73' 1"
Height : 21' 8"
First Floor: 4545 sq/ft
Garage: 837 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

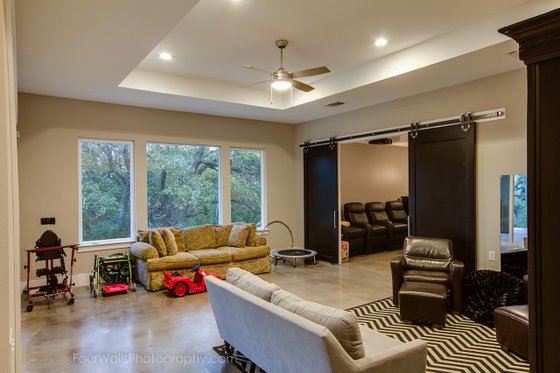

Ceiling Details : Sloped ceiling in Family Room, coffered ceiling in Media Room, Stepped Ceilings in Master Suite, Dining Room & Game Room
Primary Pitch : 4/12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stucco/Stone
Framing : 2 x 6
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Side Entry Garage
Covered Front Porch
Covered Rear Porch
Covered Front Porch:
Covered Rear Porch:
What's included in this plan set
See a sample plan set
• Floor Plan(s): Detailed plans for each level showing room names, dimensions, wall thicknesses, door and window sizes and locations, kitchen cabinet and appliance configuration, and bathroom plumbing fixture locations.
• Exterior Elevations: Views of all four sides of the house showing exterior materials.
• Cross Section(s): A vertical cutaway view of the house from roof to foundation.
• Interior Elevations: Detailed views of all cabinets, and other elements as required.
• Electrical Plan(s): Plan for each level showing the location of lights, fans, electrical outlets, and switches, etc.
• Roof Layout: A guide to the geometry of the roof, as well as pitch and overhang details.
• Foundation Plan: Thoroughly noted and dimensioned plan showing all necessary footings, piers, columns, and foundation walls.
• Ceiling Framing: Plan showing the size and layout of ceiling joists, beams, and headers, as well as the location of load bearing walls.
• Roof Framing: Plan showing size and layout of rafters, ridges, hips and valleys, as well as locations of necessary beams and brace points.
• Structural Notes and Details: Review details from the engineer. (Plans are not stamped or sealed. Engineer comments or specs are based on review of the plans at the time of design.)
*See important information before purchasing
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
