Plan #70-1433

Key Specs


  • 4610 sq/ft

  • 5 Bedrooms

  • 3.5 Baths

  • 2 Floors

  • 2 Garage

Plan Description

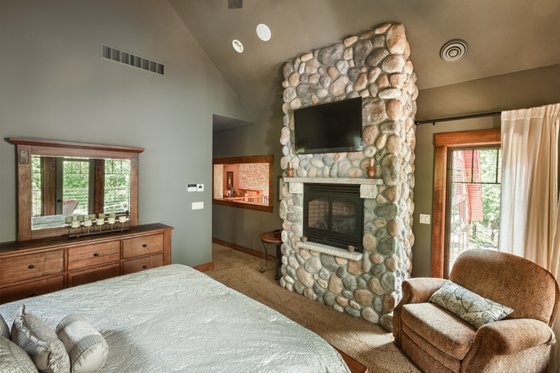

• The rear of this home is the shining star with three stories of windows and several decks making it the perfect lake or woodland home. • The main floor includes an open concept plan where the kitchen overlooks the great and dining rooms while facing the view out the back. • A sunroom with access to a unique deck is found just off the dining area. • The second floor master suite enjoys his and hers walk-in closets, laundry access and a cathedral ceiling in the bedroom. • Bedrooms two and three share a Jack and Jill bathroom while a large bonus room is accessed from the third bedroom. • A vaulted ceiling defines a loft that overlooks the main floor below. • Bedrooms four and five, a large family room and a rear access garage are found on the lower level.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

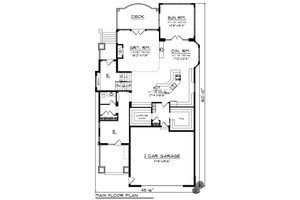

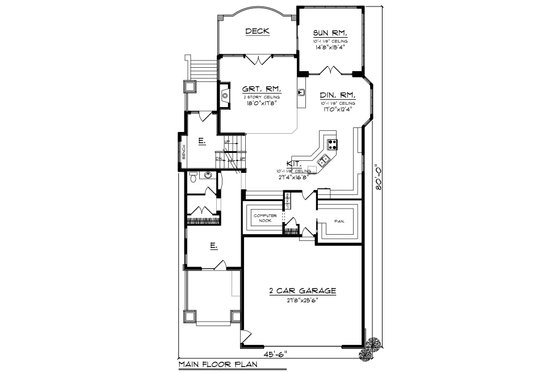

Floor Plan - Main Floor Plan
Craftsman Style House Plan - 5 Beds 3.50 Baths 4610 Sq/Ft Plan #70-1433 Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Craftsman Style House Plan - 5 Beds 3.50 Baths 4610 Sq/Ft Plan #70-1433 Floor Plan - Upper Floor Plan
Floor Plan - Lower Floor Plan
Craftsman Style House Plan - 5 Beds 3.50 Baths 4610 Sq/Ft Plan #70-1433 Floor Plan - Lower Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 5
Baths : 3.5
Stories : 2
Garages : 2

Dimension

Width : 45' 6"
Depth : 80'
Height : 32' 10"

Area

Total : 4610 sq/ft
Upper Floor : 1496 sq/ft
Garage : 720 sq/ft
Lower Floor : 1086 sq/ft
Main Floor : 2028 sq/ft
Bonus : 255 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Great 2-Story. MBR Cathedral. Loft Vault.
Lower Ceiling : 9'
Upper Ceiling Ft : 9'
Bonus Ceiling : 9'
Main Ceiling : 10'

Roof

Primary Pitch : 10:12
Roof Load : 47 lbs psf
Secondary Pitch : 6:12
Roof Framing : Truss

Exterior Wall Framing

Insulation : R-20
Exterior Wall Finish : Shake Siding. Stone.
Framing : 2x6

Bedroom Features

Split Bedrooms
Upstairs Master Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry

Additional Room Features

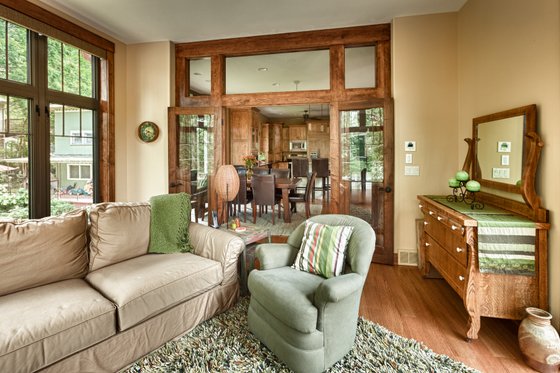

Sunroom

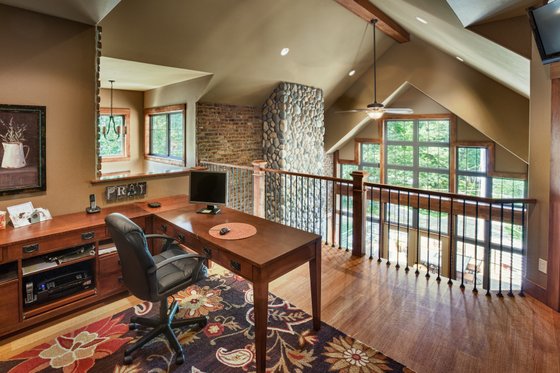

Loft
Play Flex Room
Storage Area

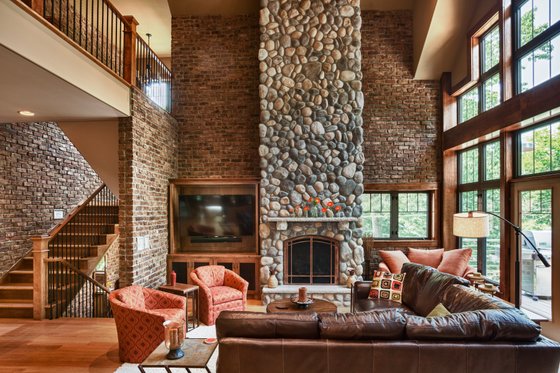

Great Room Living Room
Wet Bar
Family Room Keeping Room
Upstairs Laundry
Den Office Study Computer

Garage Features

Garage Under
Front Entry Garage
Rear Entry Garage
Rear Garage

Lot Characteristics

Suited For View Lot
Suited For Sloping Lot

Outdoor Spaces

Screened Porch
Grill Deck Sundeck
Covered Rear Porch
Balcony
Covered Front Porch

More

Suited For Vacation Home
Jack & Jill Bath
