Plan 119-179

Photographs may show modified designs.
Plan 119-179

Key Specs


4969
sq ft

3
Beds

3.5
Baths

2
Floors

4
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

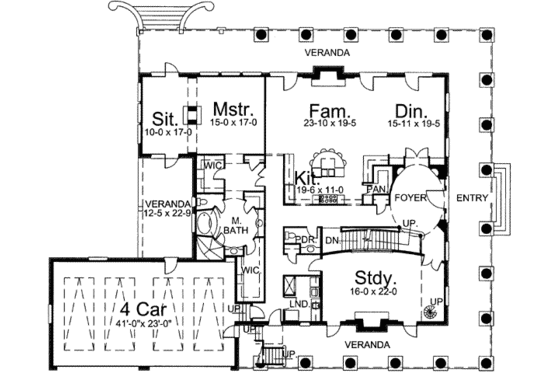

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 2
Garages: 4

Dimension

Depth : 65'
Height : 32'
Width : 97'

Area

Total : 4969 sq/ft
Basement Living: 1338 sq/ft
First Floor: 3103 sq/ft height 10'
Second Floor: 1866 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12
Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Brick
Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Master Sitting Area
Sunroom
Unfinished Future Space

Garage Features

Oversized Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch
Screened Porch
Wrap Around Porch

Rooms

3rd BR Closet:

49 sq/ft width 7' x depth 7'

Basement Foundation:

3685 sq/ft width 55' x depth 67'

Bathroom 2:

70 sq/ft width 10' x depth 7'

Bathroom 3:

192 sq/ft width 16' x depth 12'

Bedroom 2:

360 sq/ft width 24' x depth 15'

Bedroom 3:

315 sq/ft width 15' x depth 21'

Bedroom 4 Closet:

64 sq/ft width 8' x depth 8'

Breakfast Room:

80 sq/ft width 8' x depth 10'

Den/Office or Bedroom 1:

512 sq/ft width 32' x depth 16'

Dining Room:

256 sq/ft width 16' x depth 16'

Foyer:

192 sq/ft width 12' x depth 16'

Garage:

943 sq/ft width 41' x depth 23'

Gathering Room:

680 sq/ft width 40' x depth 17'

Kitchen:

252 sq/ft width 21' x depth 12'

Master Bathroom:

225 sq/ft width 15' x depth 15'

Master Bedroom:

255 sq/ft width 15' x depth 17'

Master Closet:

105 sq/ft width 15' x depth 7'

Porch - Front:

750 sq/ft width 75' x depth 10'

Porch - Left:

560 sq/ft width 56' x depth 10'

Porch - Rear:

276 sq/ft width 23' x depth 12'

Porch - Right:

500 sq/ft width 50' x depth 10'

Powder Room:

49 sq/ft width 7' x depth 7'

Study:

352 sq/ft width 16' x depth 22'

Utility Room:

80 sq/ft width 8' x depth 10'

What's included in this plan set


See a sample plan set
  • Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
  • Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
  • Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
  • Second Floor Lighting: The same details as provided for the first floor.

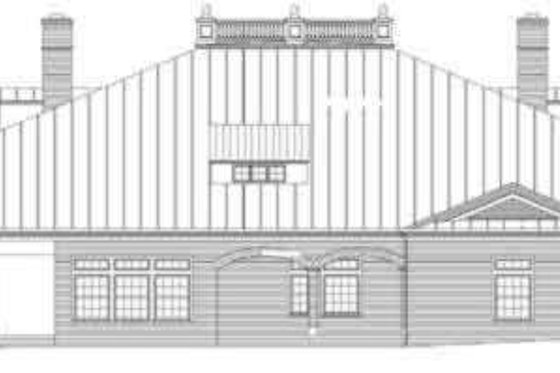

  • Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
