Plan 430-236

Photographs may show modified designs.
Plan 430-236

Plan Description


This stylish Carriage House is perfect for adding additional Garage and Storage Space to an existing residience. The upstairs is perfect for a Man Cave or Media Room and equipped with a full bath.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 0
Baths : 1
Stories: 2
Garages: 3

Dimension

Depth : 27'
Height : 25'
Width : 42'

Area

Total : 512 sq/ft
Garage : 1046 sq/ft
Porch : 61 sq/ft
Storage : 17 sq/ft
Upper Floor : 512 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12
Roof Framing : stick
Roof Load : 40
Roof Type : shingles
Secondary Pitch : 3:12

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2"x4"

Additional Room Features

Hobby Rec Room Game Room
Play Flex Room
Workshop

Garage Features

Detached Garage
Front Entry Garage
Oversized Garage

More

Economical To Build

What's included in this plan set


See a sample plan set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
  • Cover Sheet – May include index, front view of home, definitions, etc.
  • Foundation Plan – Typically includes dimensioned foundation plan with footing details.

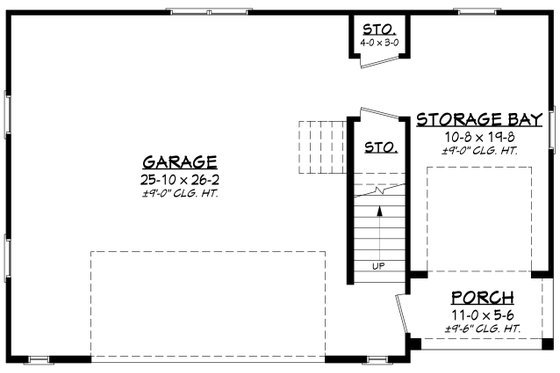

  • Dimensioned Floor Plan – Electrical may be shown.

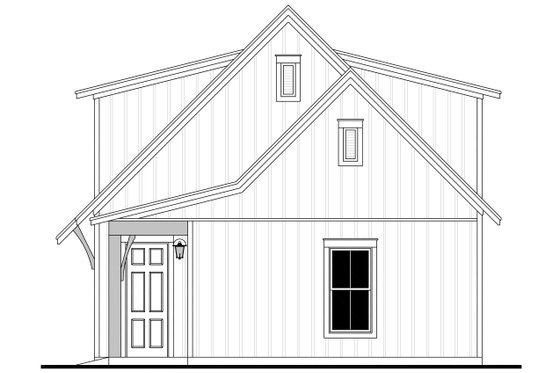

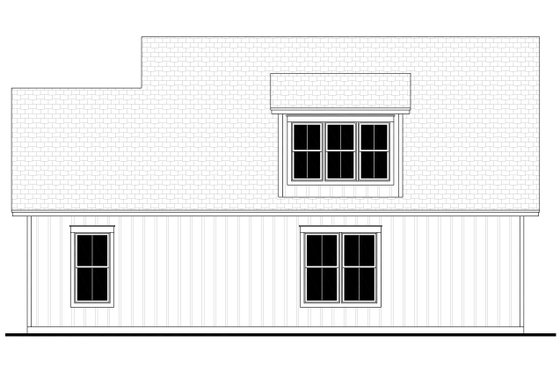

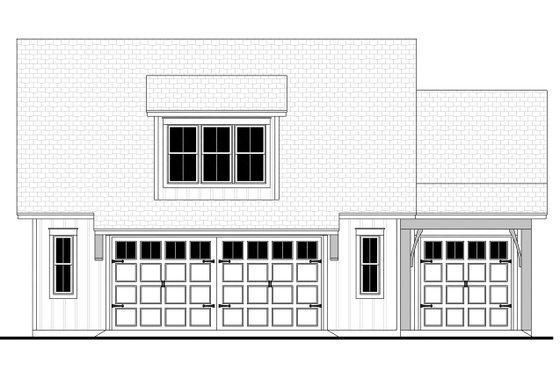

  • Exterior Views – Four exterior views of the residence with other miscellaneous details.
  • Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
  • Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
  • Wall Section(s) – Detail of wall materials and assembly.
  • Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
  • Cabinet Elevations – Displays interior kitchen cabinet views.
________________________

*Material List Note: When a material list is ordered, a list of the materials needed to build this plan will be sent. Please note that the materials list will conform to the standard plan (slab or crawlspace only). Additional options such as a Basement or 2x6 Wall conversion will not be reflected in the material list.


________________________

Note about 2x6 Wall Option: If choosing the 2x6 wall option, the added stud depth will be applied towards the interior of the walls.

*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$795.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$945.00
5 printed plan sets mailed to you.

5 Copy and PDF Set

$1045.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1295.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Wood 2x4

$0.00
Wood 2x4

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
