The design of this 5 bedroom 3.5 bath home takes advantage of steep narrow sites. The home features an additional, separate 1 bedroom 1 bath apartment on the lowest level. The front entrance from the street features a porch, foyer, and dining room, which lead you to the open kitchen and living room. In the back, the elevated deck with a double-sided fireplace gives a connection to the backyard and the main living spaces. Main level master suite, laundry facilities, and guest restroom allows for home-owners to comfortably entertain and age in place. Upstairs features lots of storage and closet space, four bedrooms, and a bonus study room with a top floor back yard deck.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

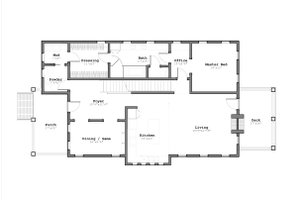

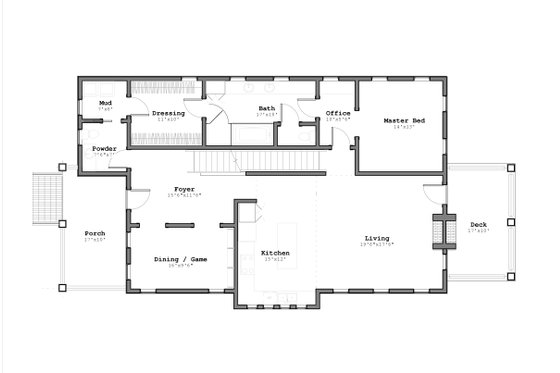

Floor Plan - Main Floor

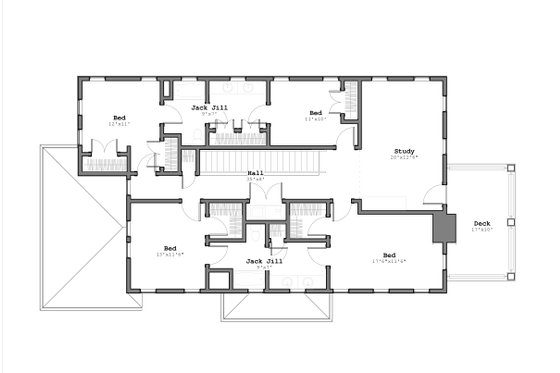

Floor Plan - Upper Floor

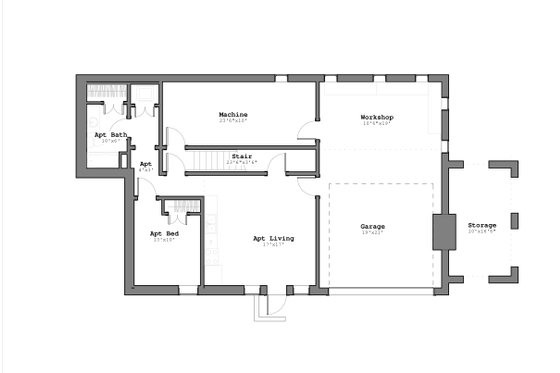

Floor Plan - Lower Floor
Full Specs & Features
Depth : 70' 7"
Height : 33' 6"
Bonus : 599 sq/ft
Decks : 312 sq/ft
Garage : 588 sq/ft
Lower Floor : 81 sq/ft
Main Floor : 1577 sq/ft
Porch : 172 sq/ft
Storage : 960 sq/ft
Upper Floor : 1535 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Bonus Ceiling : 10'
Garage Ceiling : 10'
Lower Ceiling : 10'
Main Ceiling : 10' 6"
Primary Pitch : 6 / 12
Secondary Pitch : 2 1/2 / 12
Exterior Wall Framing
Exterior Wall Finish : Brick & Wood Siding
Framing : 2x6
Main Floor Bedrooms
Main Floor Master Bedroom
Additional Room Features
Main Floor Laundry
Master Sitting Area
Side Entry Garage
Suited For Narrow Lot
Suited For Sloping Lot
Covered Front Porch
Covered Rear Porch
Economical To Build
Jack & Jill Bath
Energy Efficient Features
