Plan 942-16

Photographs may show modified designs.

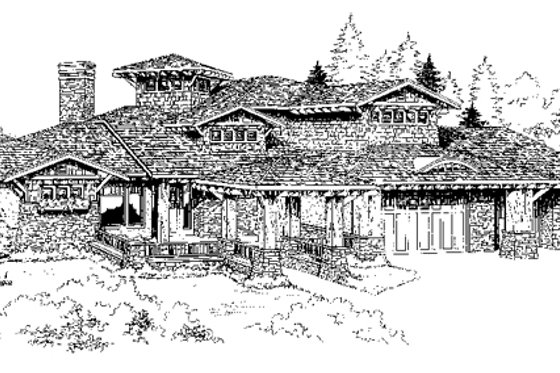

Plan 942-16

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

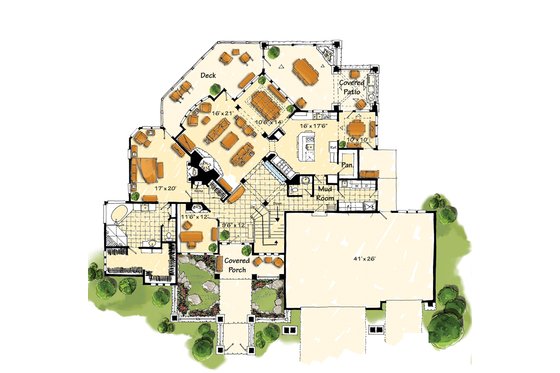

Floor Plan - Main Floor Plan

Reverse

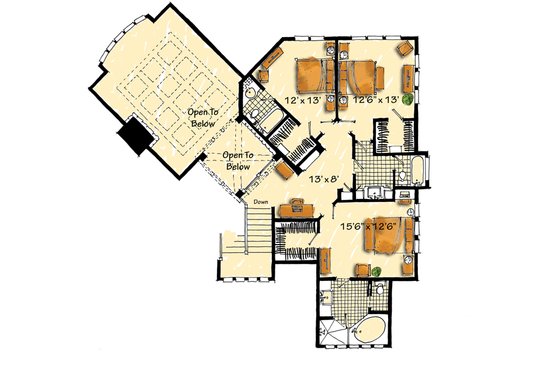

Floor Plan - Upper Floor Plan

Reverse

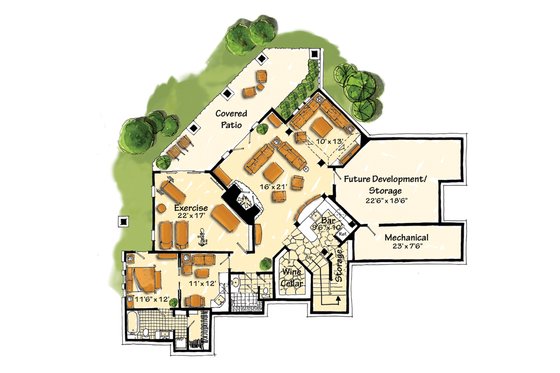

Floor Plan - Lower Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 5
Stories: 2
Garages: 3

Dimension

Depth : 74' 2"
Height : 41' 9"
Width : 92' 2"

Area

Total : 5876 sq/ft
Basement Living: 1986 sq/ft
Basement Unfinished: 691 sq/ft
First Floor: 2725 sq/ft
Garage: 1084 sq/ft
Second Floor: 1165 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x6 Wood - 2x4

Bedroom Features

Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Mud Room
Open Floor Plan
Storage Area
Upstairs Laundry
Vaulted / Cathedral Ceilings
Wine Cellar

Garage Features

Front Entry Garage

Outdoor Spaces

Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Grill Deck Sundeck
Outdoor Kitchen Grill

Rooms

Bedroom 2:

width 15' 6" x depth 12' 6"

Bedroom 3:

width 12' x depth 13'

Bedroom 4:

width 12' 6" x depth 13'

Bedroom 5:

width 11' 6" x depth 12'

Bedroom 5 Living Area:

width 11' x depth 12'

Breakfast Nook:

width 10' x depth 10'

Dining Room:

width 10' 6" x depth 14'

Exercise Room:

width 22' x depth 17'

Family Room:

width 16' x depth 21'

Foyer:

width 9' 6" x depth 12'

Game Room:

width 10' x depth 13'

Garage:

1084 sq/ft width 41' x depth 26'

Great Room:

width 16' x depth 21'

Home Office:

width 11' 6" x depth 12'

Kitchen:

width 16' x depth 17' 6"

Loft:

width 13' x depth 8'

Master Bedroom:

width 17' x depth 20'

Mechanical:

width 23' x depth 7' 6"

Storage/Future Development:

width 22' 6" x depth 18' 6"
