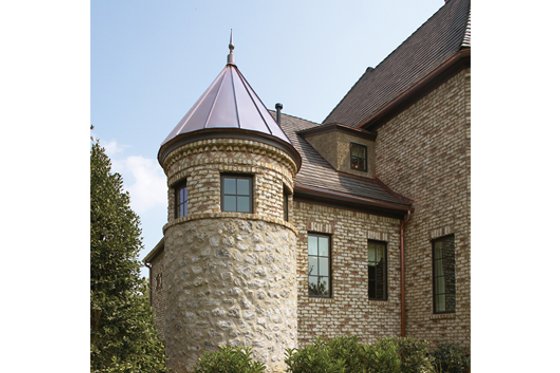

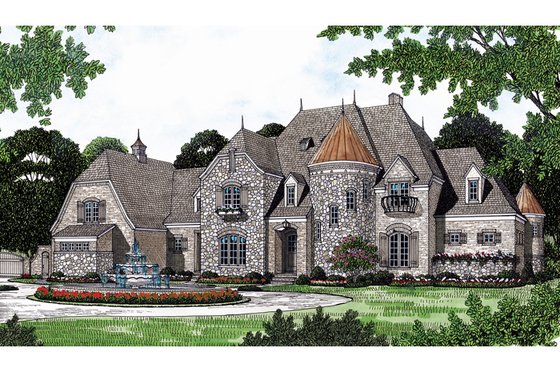

Brick with stone accents, turrets with copper roofs, false balconies and

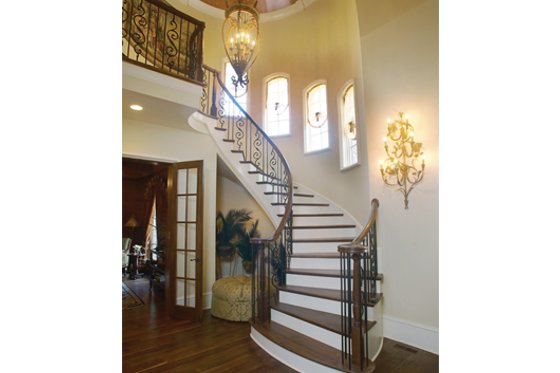

cupolas combine to give an enchanting look and feel. The front turret

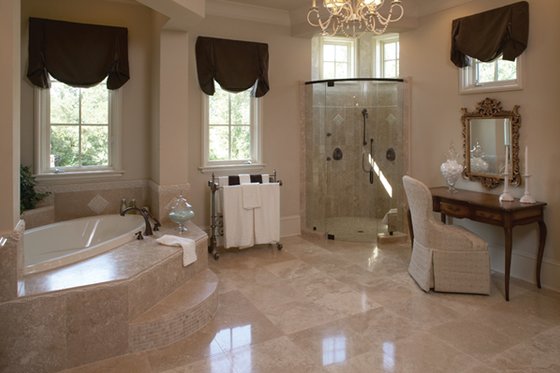

houses the spiral staircase while the circular master shower sits within
the rear turret. As enchanting as the home itself, is the master
retreat. Features include a separate sitting area in the master suite, a
gracious walk-in closet divided by a dressing table, large spa tub and

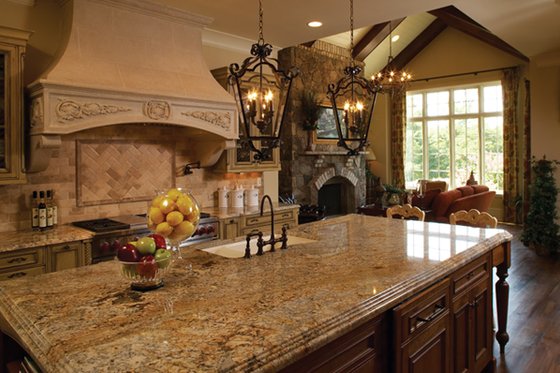

spacious morning kitchen.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

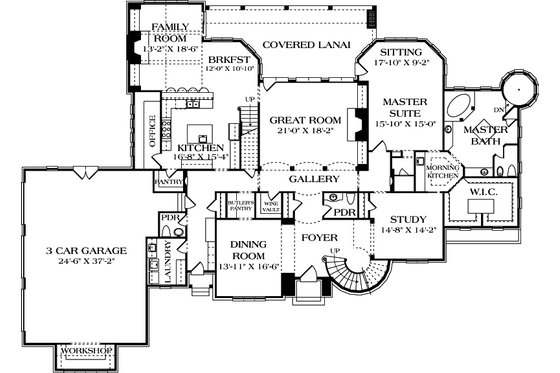

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Depth : 79' 5"
Height : 40' 2"
First Floor: 3763 sq/ft height 10'
Garage: 1104 sq/ft
Porch: 32 sq/ft
Second Floor: 2603 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Main Floor Master Bedroom
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Play Flex Room
Unfinished Future Space
Side Entry Garage
Suited For Corner Lot
Suited For Sloping Lot
Covered Front Porch
Suited For Vacation Home
Structural Information Provided
Structural 2nd Floor Framing
225 sq/ft width 13' 8" x depth 16' 6"
237 sq/ft width 17' 10" x depth 13' 4"
198 sq/ft width 14' 8" x depth 13' 6"
129 sq/ft width 12' x depth 10' 10"
229 sq/ft width 13' 11" x depth 16' 6"
243 sq/ft width 13' 2" x depth 18' 6"
333 sq/ft width 19' 10" x depth 16' 10"
910 sq/ft width 24' 6" x depth 37' 2"
381 sq/ft width 21' x depth 18' 2"
255 sq/ft width 16' 8" x depth 15' 4"
237 sq/ft width 15' 10" x depth 15'
163 sq/ft width 17' 10" x depth 9' 2"
207 sq/ft width 14' 8" x depth 14' 2"
What's included in this plan set
See a sample plan set
*See important information before purchasing
This plan typically includes:
Dimensioned and detailed Foundation plan (type as listed on home plan description)
Dimensioned and detailed floor plans
Framing plans (framing may be shown on floor plans in some cases.)
Complete front, side and rear elevations
Typical building sections (as deemed necessary for construction)
Typical foundation details, wall sections, and cornice details necessary for construction
Separate electrical plan (may be shown on floor plans in some cases)
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
