Plan 124-657

Photographs may show modified designs.
Plan 124-657

Key Specs


804
sq ft

1
Beds

1
Baths

2
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

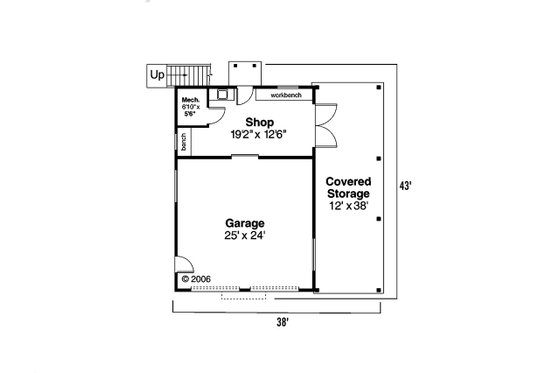

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 1
Stories: 2
Garages: 2

Dimension

Depth : 42'
Height : 25' 3"
Width : 38'

Area

Total : 804 sq/ft
Garage: 988 sq/ft height 9'
Second Floor: 804 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12
Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Shingle
Framing : 2"x6"

Additional Room Features

Den Office Study Computer
Loft
Workshop

Garage Features

Garage Under

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing

Rooms

Balcony:

78 sq/ft width 13' x depth 6'

Garage:

587 sq/ft width 23' 10" x depth 24' 8"

Loft:

394 sq/ft width 37' x depth 10' 8"

Office:

122 sq/ft width 12' x depth 10' 2"

Shop:

234 sq/ft width 12' 4" x depth 19'

Storage:

456 sq/ft width 38' x depth 12'
