This southern traditional duplex plan has the appearance of a two story single family home. The front door leads to a foyer concealing two separate living quarters. Each living quarter has a great room with large closet that can be used as a computer nook, a spacious kitchen with dining area, and a rear access to a patio with storage room. Travel upstairs and find a full bath, large storage closet and two bedrooms – one with a walk-in closet and French doors to the balcony.Stated square footage is for 1 side of the duplex unit only.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (walk out is not shown on elevations unless finished walk out)

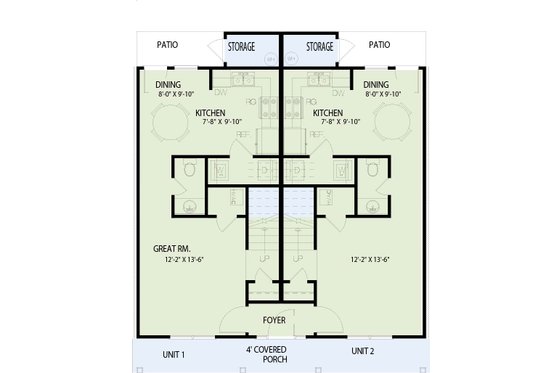

Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
