Plan 120-157

Photographs may show modified designs.
Plan 120-157

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3
Stories: 2
Garages: 2

Dimension

Depth : 50'
Height : 28'
Width : 51' 11"

Area

Total : 1753 sq/ft
Bonus: 209 sq/ft
First Floor: 1320 sq/ft height 9'
Second Floor: 433 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Loft

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch

Rooms

3rd BR Closet:

20 sq/ft width 6' 6" x depth 3' 2"

Basement Foundation:

2595 sq/ft width 51' 11" x depth 50'

Bathroom 2:

40 sq/ft width 8' x depth 5'

Bedroom 2:

137 sq/ft width 12' 5" x depth 11' 1"

Bedroom 2 Closet:

16 sq/ft width 8' 4" x depth 2'

Bedroom 3:

124 sq/ft width 12' 5" x depth 10'

Bedroom 3 Closet:

16 sq/ft width 8' 4" x depth 2'

Breakfast Room:

80 sq/ft width 10' x depth 8'

Crawlspace Foundation:

2595 sq/ft width 51' 11" x depth 50'

Dining Room:

158 sq/ft width 12' 4" x depth 12' 10"

Foyer:

64 sq/ft width 7' x depth 9' 2"

Garage:

455 sq/ft width 24' 5" x depth 18' 8"

Garage Storage:

40 sq/ft width 16' 8" x depth 2' 5"

Gathering Room:

256 sq/ft width 14' 6" x depth 17' 8"

Hall Closet:

8 sq/ft width 4' 2" x depth 2'

Kitchen:

159 sq/ft width 11' 2" x depth 14' 3"

Master Bathroom:

92 sq/ft width 11' 2" x depth 8' 3"

Master Bedroom:

182 sq/ft width 13' x depth 14'

Master Closet:

60 sq/ft width 11' 2" x depth 5' 5"

Porch - Front:

280 sq/ft width 35' x depth 8'

Porch - Rear:

120 sq/ft width 15' x depth 8'

Powder Room:

29 sq/ft width 7' x depth 4' 2"

Slab Foundation:

2550 sq/ft width 51' x depth 50'

Storage:

95 sq/ft width 7' 5" x depth 12' 11"

Utility Room:

42 sq/ft width 5' 6" x depth 7' 8"

What's included in this plan set


See a sample plan set
  • Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.

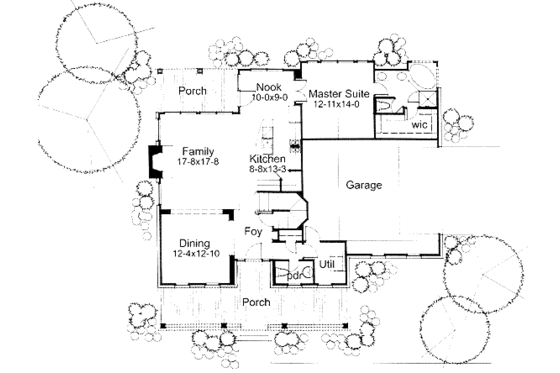

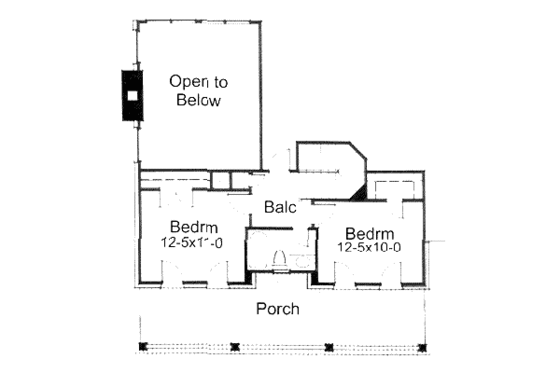

  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

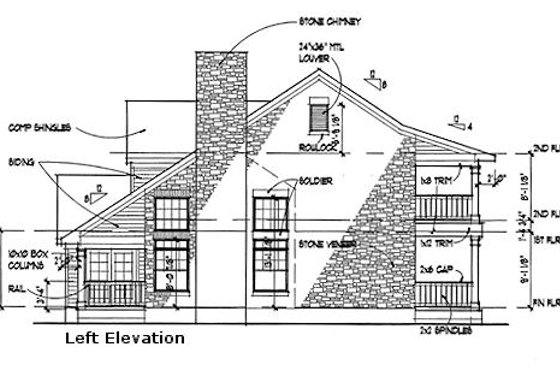

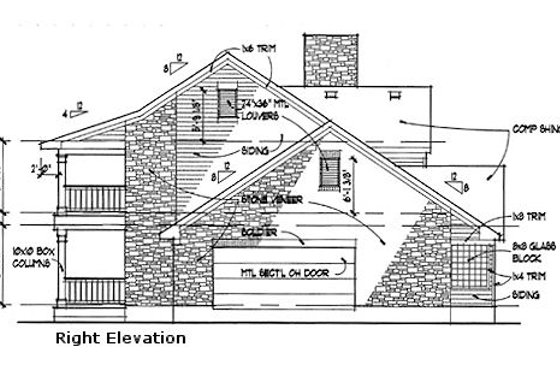

  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$716.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$716.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

5 Copy Set

$836.00
5 printed plan sets mailed to you.

5 Copy and PDF Set

$916.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1356.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$316.00
Ideal for level lot, lower level of home partially or fully underground.

Wood 2x4

$0.00
Wood 2x4

Wood 2x6

$196.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$156.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$316.00
Additional Use License.

Audio Video Design

$80.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$80.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unlimited Use License

$316.00
Unlimited Use License.

3 Car Garage

$156.00
Adds an additional garage bay

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
