This expansive floor plan spans 164 feet wide; encompassing a truly magnificent floor plan! Starting with its impressive elevation; cast with a combination of stone & stucco greeting you as you enter this Tuscan beauty. To the left a massive master suite awaits with two wet bars, a dressing area, his & hers baths adjoined with a radial shower. The main living portion invites family and friends alike to relax and enjoy the abundance of space and intricate details. Upstairs in this Luxury Home Plan you will find three additional bedrooms and baths, a separate utility room and sun deck for relaxing.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

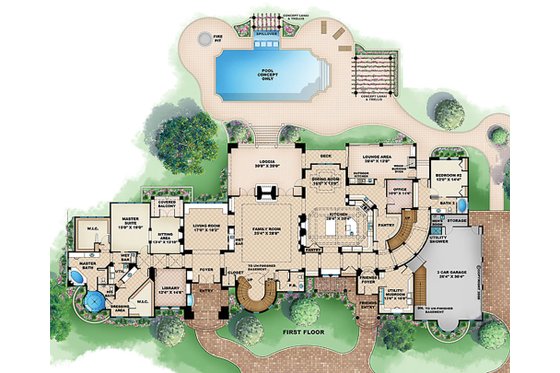

Floor Plan - Main Floor

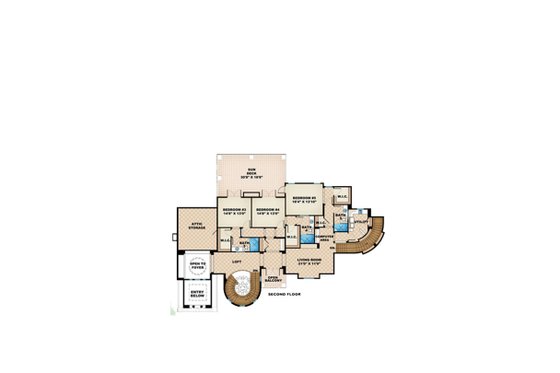

Floor Plan - Upper Floor
Full Specs & Features
Depth : 74' 10"
Height : 40'
Basement : 6633 sq/ft
Decks : 553 sq/ft
Garage : 1096 sq/ft
Main Floor : 6178 sq/ft
Patios : 437 sq/ft
Porch : 627 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Flat, Coffer, Double Coffer, dome, coffer with beams
Main Ceiling : 12'
Primary Pitch : 8:12
Roof Framing : Manufactured Trusses
Roof Type : Concrete Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco and stone
Framing : 2x6 wood framing
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Master Sitting Area
Side Entry Garage
Suited For Corner Lot
Suited For View Lot
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Suited For Vacation Home
