Plan #27-502

Key Specs


  • 7107 sq/ft

  • 4 Bedrooms

  • 4.5 Baths

  • 1 Floor

  • 3 Garage

Plan Description

This Transitional Mediterranean style home features just over 4,300 square feet of living space in a single story home design. With four bedrooms, four full baths, a beautiful formal dining room, home office and a large gourmet kitchen, this home plan is only enhanced by its spacious and inviting outdoor living areas and volume ceilings throughout! The great room layout of this floor plan is ideal for family and friends, allowing for an easy transition from the kitchen, and dinette to the great room and outdoor living. This layout defines the essence of casual, waterfront living! In the great room, sliding glass doors open, and pocket out-of-sight for a seamless transition to the al fresco dining area that overlooks the swimming pool and lake beyond while letting an abundance of natural light into the room.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

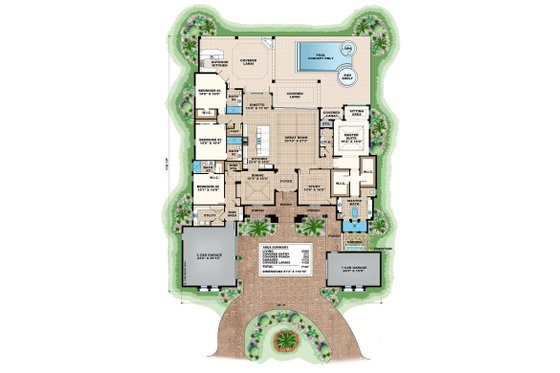

Floor Plan - Main Floor Plan
Mediterranean Style House Plan - 4 Beds 4.50 Baths 7107 Sq/Ft Plan #27-502 Floor Plan - Main Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 4.5
Stories : 1
Garages : 3

Dimension

Height : 27' 8"
Depth : 116' 10"
Width : 91' 4"

Area

Total : 7107 sq/ft
Garage : 1172 sq/ft
Main Floor : 4386 sq/ft
Porch : 1126 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 14'
Ceiling Details : Vault. Coffer, Flat

Roof

Primary Pitch : 6:12
Roof Type : Concrete Tile
Roof Framing : Mfg Trusses

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : CMU

Bedroom Features

Main Floor Bedrooms
Walk In Closet
Teen Suite Jack Jill Bath
Guest Suite
Split Bedrooms
Main Floor Master Bedroom

Kitchen Features

Breakfast Nook
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Kitchen Island

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Wine Cellar
Master Sitting Area

Garage Features

Side Entry Garage
Oversized Garage
Split Garage

Lot Characteristics

Suited For View Lot
Suited For Corner Lot

Outdoor Spaces

Covered Front Porch
Outdoor Kitchen Grill
Covered Rear Porch

More

Wheelchair Adaptable
Suited For Vacation Home
Empty Nester

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing

Plan Options
CAD Set $3157.75 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $3157.75 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $3157.75 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Mirror Reverse Sets $297.50 Choose how many sets of the 5 or 8 copy set to mirror. Text and dimensions will be backwards. Click here for more information.
Right-Reading Reverse $297.50 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.
