Plan 27-569

Photographs may show modified designs.
Plan 27-569

Plan Description


This West Indies style home is designed with much thought to its graceful curb appeal and view oriented layout. Complete with a master suite and two additional ensuite guestrooms, a formal study, elevator and volume ceiling throughout, this home plan functionally caters to what modern families want in luxury, three-story architecture. The great room floor plan provides casual living while creating a functional space for hosting friends and family with the kitchen, dining room and outdoor living nearby. The master suite offers a private retreat for the owner with large walk in closets and a private covered lanai. Upstairs, your guest will enjoy privacy with split bedrooms, loft with wet bar and access to the rear covered lanai or private balcony. Take advantage of beautiful views from practically every room in this design.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

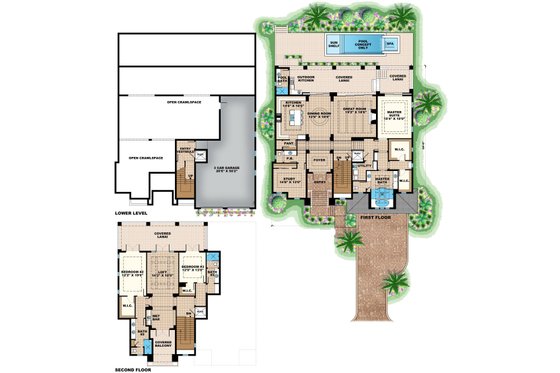

Floor Plan - Main Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 3
Garages: 3

Dimension

Depth : 64' 6"
Height : 39' 2"
Width : 63' 8"

Area

Total : 4712 sq/ft
Garage : 1167 sq/ft
Lower Floor : 259 sq/ft
Main Floor : 2911 sq/ft
Porch : 1255 sq/ft
Upper Floor : 1542 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Flat, Coffer, Double Coffer, Radial Coffer
Main Ceiling : 12'
Upper Ceiling Ft : 10'

Roof

Primary Pitch : 7:12
Roof Framing : Mfg Trusses
Roof Type : Concrete Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : CMU

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Storage Area
Unfinished Future Space
Wet Bar

Garage Features

Front Entry Garage
Oversized Garage

Lot Characteristics

Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill

More

Jack & Jill Bath
Suited For Vacation Home
Wheelchair Adaptable

What's included in this plan set


See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing


Plan Options

CAD Set

$4857.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$4857.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$4857.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Foundation Options

Pier

$0.00
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
