Craftsman details, a large front porch and an easy-to-build gable roof give this ranch home a curb appeal that will blend easily into virtually any neighborhood. As you enter the home, you’ll find the kitchen to your left with a breakfast bar that overlooks a formal dining room at the back of the home. A covered porch on the back of the home accessed off the dining room continues to pull your eye through the home. The large great room lies adjacent to the dining/porch area and features a fireplace wall with built-in bookcases on both sides. The master suite includes a walk-in closet, dual sinks and direct access to the laundry off the closet. Two additional bedrooms share a Jack and Jill bathroom and both have close proximity to the laundry. A three-car, side-load garage completes the plan.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

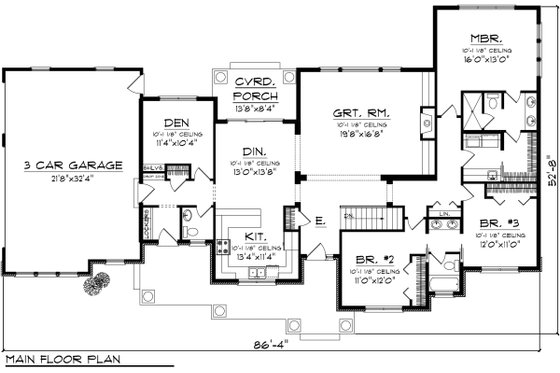

Floor Plan - Main Floor
Full Specs & Features
Depth : 52' 8"
Height : 24'
First Floor: 2164 sq/ft height 10' 1"
Garage: 715 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Lower Ceiling : 8'
Main Ceiling : 10'
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding, Shake, Stone
Framing : 2x6
Main Floor Bedrooms
Main Floor Master Bedroom
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Covered Front Porch
Covered Rear Porch
width 11' x depth 12'
width 12' x depth 11'
Covered Front Porch:
Covered Rear Porch:
113 sq/ft width 13' 8" x depth 8' 4"
width 11' 4" x depth 10' 4"
width 13' x depth 13' 8"
715 sq/ft width 21' 8" x depth 32' 4"
width 19' 8" x depth 16' 8"
width 13' 4" x depth 11' 4"
width 16' x depth 13'
What's included in this plan set
See a sample plan set
*See important information before purchasing
Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Schematic electrical plans with suggested switch, outlet, and light fixture locations
General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
