A metal roof, graceful columns and an angled garage all make this home unique and spacious. A vaulted ceiling runs from the entry through the den directly ahead. The great room of this home lies to the front and features a cathedral ceiling. The kitchen includes a walk-in pantry, central island and direct access to the dining area. A covered porch, accessed just off the kitchen runs along the back of the home for extra living space. The master suite includes a cathedral ceiling, walk-in closet and direct access to the laundry room. The second bedroom lies to the front of the home with access to the bathroom just off the hall. A bonus room is found over the garage for extra storage or living space. A three-stall, angled garage with extra storage completes the home.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

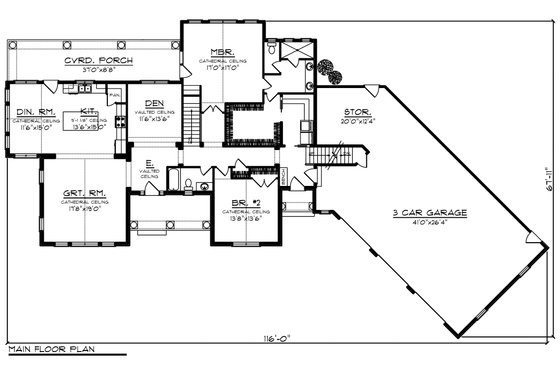

Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Full Specs & Features
Depth : 67' 11"
Height : 27' 1"
Bonus: 653 sq/ft
First Floor: 2271 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : 9'. Entry/Den Vaulted, Grt Rm/Din Rm Master Bdrm & Bdrm #2 Cathedral.
Lower Ceiling : 8'
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Primary Pitch : 12:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding, Stone
Framing : 2x6
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Front Entry Garage
Covered Front Porch
Covered Rear Porch
What's included in this plan set
See a sample plan set
*See important information before purchasing
Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Schematic electrical plans with suggested switch, outlet, and light fixture locations
General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
