Plan 70-847

Photographs may show modified designs.
Plan 70-847

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

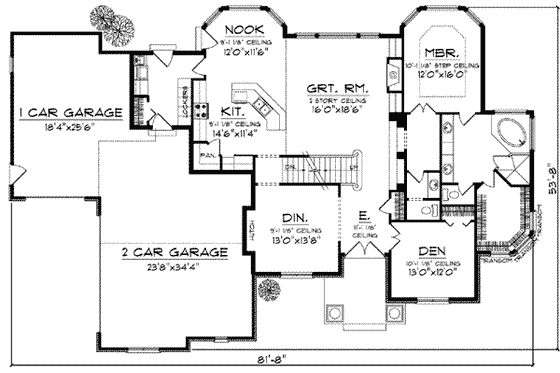

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 2
Garages: 3

Dimension

Depth : 53' 8"
Height : 29' 10"
Width : 81' 8"

Area

Total : 2874 sq/ft
First Floor: 1987 sq/ft
Garage: 1158 sq/ft
Porch: 108 sq/ft
Second Floor: 887 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : 2"x6"

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Storage Area

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch

More

Jack & Jill Bath

Rooms

Basement Foundation:

4382 sq/ft width 81' 8" x depth 53' 8"

Bathroom 2:

38 sq/ft width 5' 2" x depth 7' 5"

Bathroom 3:

128 sq/ft width 11' 4" x depth 11' 4"

Bathroom 4:

42 sq/ft width 5' 2" x depth 8' 2"

Bedroom 2:

177 sq/ft width 13' x depth 13' 8"

Bedroom 2 Closet:

28 sq/ft width 6' x depth 4' 10"

Bedroom 3:

147 sq/ft width 12' x depth 12' 4"

Bedroom 3 Closet:

36 sq/ft width 7' 4" x depth 5'

Bedroom 4:

152 sq/ft width 12' x depth 12' 8"

Bedroom 4 Closet:

17 sq/ft width 8' 10" x depth 2'

Breakfast Room:

138 sq/ft width 12' x depth 11' 6"

Den:

156 sq/ft width 13' x depth 12'

Dining Room:

177 sq/ft width 13' x depth 13' 8"

Foyer:

81 sq/ft width 7' 8" x depth 10' 7"

Garage:

812 sq/ft width 23' 8" x depth 34' 4"

Garage Two:

467 sq/ft width 18' 4" x depth 25' 6"

Gathering Room:

296 sq/ft width 16' x depth 18' 6"

Hall:

23 sq/ft width 3' x depth 7' 9"

Hall Closet:

8 sq/ft width 2' x depth 4' 4"

Kitchen:

164 sq/ft width 14' 6" x depth 11' 4"

Laundry Room:

99 sq/ft width 9' x depth 11'

Master Bathroom:

193 sq/ft width 13' 10" x depth 14'

Master Bedroom:

192 sq/ft width 12' x depth 16'

Master Closet:

83 sq/ft width 8' 4" x depth 10'

Pantry:

17 sq/ft width 4' 2" x depth 4' 2"

Porch - Front:

130 sq/ft width 12' 8" x depth 10' 4"

What's included in this plan set


See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale

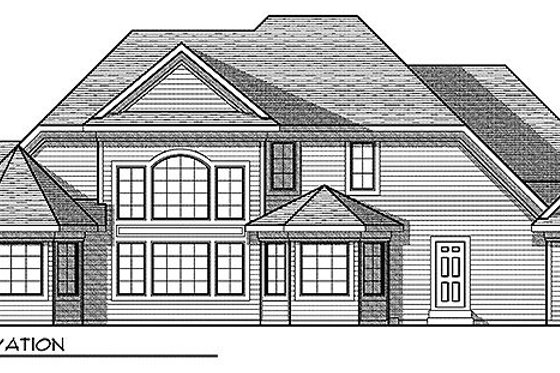

  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
