Charm abounds in this Mediterranean villa house plan. Old world features are accentuated by high vaulted and coffered ceilings. The private master suite opens to the lanai and each of the upstairs bedrooms has the luxury of its own bathroom. Designed for a narrow lot, this home plan is perfect for any family.
Master Suite, coffered 11 -
Master Bathroom, flat 10 -
Bedroom #2, flat 10 -
Bedroom #3, flat 10 -
Bedroom #4, flat 10 -
Baths, flat 10 -
Entry, flat 21 -
Foyer, flat 21 -
Loft, flat 10 -
Great Room, double coffer 11 -
Dining Room, coffered 11 -
Kitchen, coffered 10 -
Rear Lanai, flat 10
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

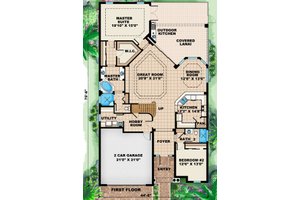

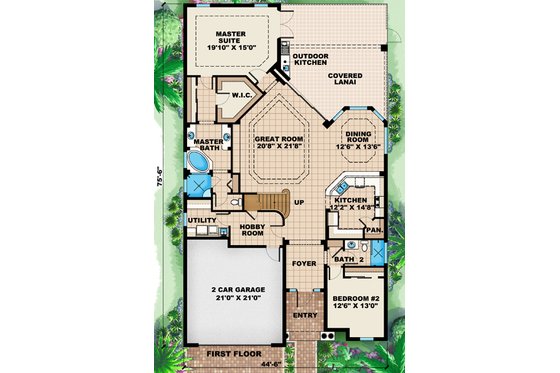

Floor Plan - Main Floor Plan

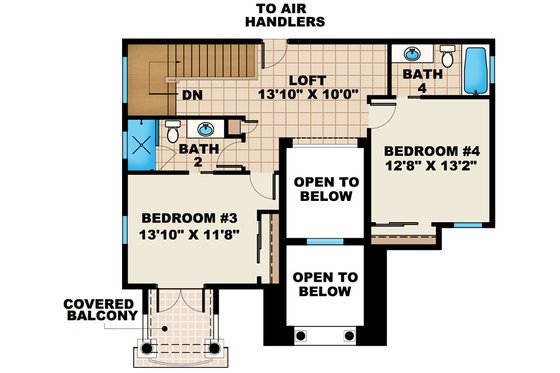

Floor Plan - Upper Floor Plan
Full Specs & Features
Decks : 54 sq/ft
Garage : 495 sq/ft
Main Floor : 2198 sq/ft
Patios : 308 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6:12
Roof Framing : Manufactured Trusses
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Concrete block
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Suited For Narrow Lot
Suited For View Lot
Covered Rear Porch
Outdoor Kitchen Grill
What's included in this plan set
See a sample plan set
*See important information before purchasing
Please call if building in Lee and Collier Counties of Florida, restrictions apply.
Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
Roof Slope Indicators
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
Floor Joist Size and Spacing
Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)
Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
