Plan Description

Additional Use License: $280.00

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

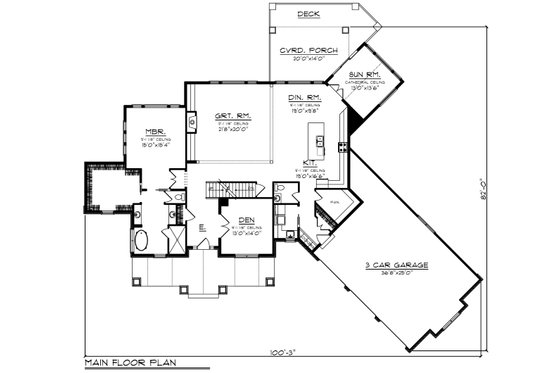

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

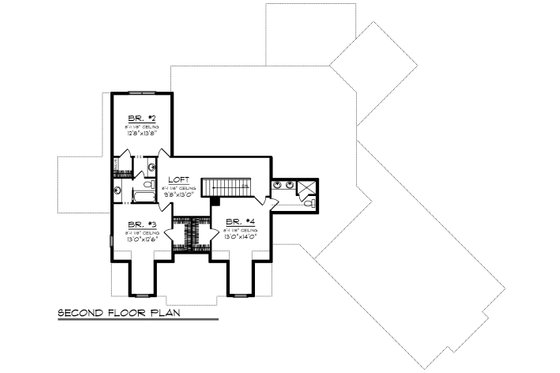

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 3.5

Stories: 2

Garages: 3

Dimension

Depth : 82'

Height : 32' 7"

Width : 100' 3"

Area

Total : 3792 sq/ft

Garage : 982 sq/ft

Main Floor : 2625 sq/ft

Porch : 578 sq/ft

Upper Floor : 1167 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Cathedral ceilings in Great Room & Sunroom

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Roof Load : 47 psf

Roof Type : Shingle

Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Stone/Siding

Framing : 2 x 6

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Mud Room

Sunroom

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Jack & Jill Bath

Rooms

Bath 2:

width 9' 4" x depth 5' 4"

Bath 2 (2nd Sink Area):

width 5' x depth 4' 4"

Bath 3:

width 10' x depth 6' 8"

Bedroom 2:

width 12' 8" x depth 13' 8"

Bedroom 3:

width 13' x depth 12' 6"

Bedroom 4:

width 13' x depth 14'

Covered Front Porch:

width 36' x depth 9' 8"

Covered Rear Porch:

width 20' x depth 14'

Deck:

width 22' 8" x depth 6'

Den:

width 13' x depth 14'

Dining Room:

width 19' x depth 9' 8"

Foyer:

width 8' x depth 12'

Great Room:

width 21' 8" x depth 20'

Half Bath :

width 6' 4" x depth 5'

Kitchen:

width 19' x depth 16' 6"

Laundry:

width 6' x depth 8' 6"

Loft:

width 9' 8" x depth 13'

Master Bath:

width 16' x depth 13'

Master Bedroom:

width 15' x depth 15' 4"

Master Closet:

width 11' 8" x depth 11' 8"

Mud Room:

width 6' 8" x depth 5' 6"

Sun Room:

width 13' x depth 13' 6"

What's included in this plan set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

Pricing

Plan Options

5 Copy Set

$1502.10

5 printed plan sets mailed to you.

8 Copy Set

$2116.80

8 printed plan sets mailed to you.

PDF Set

Best Value!

$2730.60

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$2730.60

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$4778.10

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Basement

$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$337.50

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$337.50

Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00

Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$337.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$72.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$90.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$35.10

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$54.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
