Plan 70-1128

Key Specs

3858
sq ft

4
Beds

2.5
Baths

1
Floors

4
Garages

Plan Description

A hip roofline defines that tone of this spacious walkout ranch. As you enter you’ll be enthralled with the circular staircase with a two-story ceiling that leads to the lower level along with the multiple step ceilings found throughout the home. The main living area is found at the back of the home where a spacious kitchen with island bar overlooks the great room and nook to create an open plan where you can spread out and stay within site. A formal dining room is located to your left as you enter the home with a den opposite to your right where French doors add charm to the space. The master suite is found to the right of the design and pampers with a large walk-in closet, step ceiling and dual sinks. Three additional bedrooms, a game room, family room and wet bar are located in the lower level. A three-stall, side-load garage completes the home.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

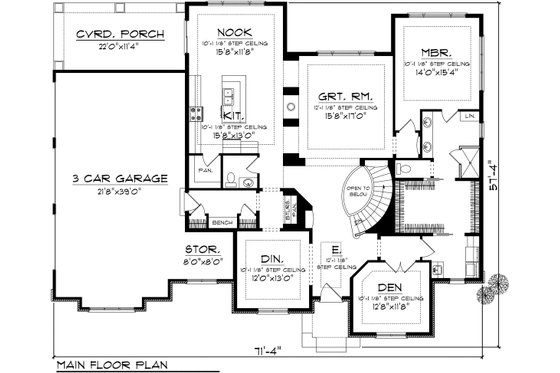

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 2.5

Stories: 1

Garages: 4

Dimension

Depth : 57' 4"

Height : 24' 1"

Width : 71' 4"

Area

Total : 3858 sq/ft

Basement Living: 1610 sq/ft height 8' 9"

First Floor: 2248 sq/ft height 10' 1"

Garage: 912 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 10'. Entry/Grt Rm 12' Step, Kitch/Nook/Din Rm/Den/Master Bdrm 10' Step

Lower Ceiling : 9'

Main Ceiling : 10'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47 psf

Roof Type : Asphalt

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Stucco, Stone, Siding

Framing : 2x6

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Main Floor Laundry

Storage Area

Unfinished Future Space

Wet Bar

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For Sloping Lot

Outdoor Spaces

Covered Rear Porch

Rooms

Bedroom 2:

width 13' x depth 13' 6"

Bedroom 3:

width 13' 6" x depth 13'

Bedroom 4:

width 13' 4" x depth 14'

Den:

width 12' 8" x depth 11' 8"

Dining Room:

width 12' x depth 13'

Family Room:

width 18' x depth 21' 4"

Game Room:

width 15' x depth 14'

Garage:

912 sq/ft width 21' 8" x depth 39'

Great Room:

width 15' 8" x depth 17'

Kitchen:

width 15' 8" x depth 13'

Master Bedroom:

width 14' x depth 15' 4"

Nook:

width 15' 8" x depth 11' 8"

Storage:

width 8' x depth 8'

What's included in this plan set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
