Plan #917-3

Key Specs


  • 398 sq/ft

  • 1 Bedroom

  • 1 Baths

  • 1 Floor

  • No Garage

Plan Description

The Santa Barbara is one of six gorgeous little 400-square-foot houses in the California Collection created by The Homestead Partners. Each house has a full kitchen and bathroom, private bedroom with space for at least a queen-size bed, living/dining/kitchen that opens to an outdoor dining patio or terrace, and plenty of storage. Big enough to have a friend over. Just make sure you're in love with them first. Have your time machine plop you down wherever and whenever in Spanish California and you'll find magnificent adobe ranch houses, with or without Zorro and Sergeant Garcia. The style persisted for centuries, and then post-World War I developers transformed it into ubiquitous urban and suburban middle-class housing that still dots the southwest. Ours is both smaller and nicer than those, Spanish Colonial distilled so perfectly you'll expect Leo Carrillo to walk through the French doors from the patio with martini in hand. Interior Features 398 square feet Open living/dining room and full kitchen, with French doors opening to raised side patio, and entry door opening to raised front patio Cathedral ceilings with exposed rafters throughout Full bathroom Space for compact washer/dryer Bedroom sized for a king or queen bed, with built-in desk, storage, closet, and French doors opening to side patio Exterior Features 441 square feet Raised open-air patio at entry Raised side patio covered with open rafters Total Footprint 839 square feet
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

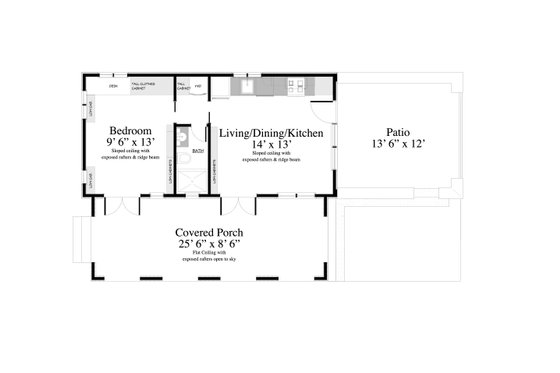

Floor Plan - Main Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 1
Baths : 1
Stories : 1
Garages : 0

Dimension

Width : 42' 2"
Depth : 23'
Height : 14' 9"

Area

Total : 398 sq/ft
Porch : 441 sq/ft
Main Floor : 398 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Cathedral ceilings with exposed rafters throughout.
Main Ceiling : 12'

Roof

Roof Framing : Stick
Primary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : 2x4

Additional Room Features

Great Room Living Room

Lot Characteristics

Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch

More

Suited For Vacation Home

What's included in this plan set

See a sample plan set

A1- Cover Sheet:

  • General Notes
  • Full-color exterior rendering of the Garage/Apartment
A2 - Foundation and Floor Plan
  • Drawn to a scale of 1/4"=1'-0" (1/4 inch equals 1 foot; 1 inch equals 4 feet)
  • Position and dimensions of doors, windows, interior walls, etc. are indicated
A3 - Roof Plans
  • Drawn to 1/4-inch scale
  • Dimensioned Roof Plan and Roof Framing Plan
A4 - Exterior Elevations:
  • Drawn to 1/4-inch scale
  • Detailed drawings of the front and right side of the building
  • Suggested window sizes and types
  • Suggested exterior materials, and critical vertical dimensions
A5- Exterior Elevations:
  • Drawn to 1/4-inch scale
  • Detailed drawings of the rear and left side of the building
  • Suggested window sizes and types
  • Suggested exterior materials, and critical vertical dimensions
A6- Building Section and Details:
  • Building Section drawn to 3/8-inch scale
  • Wall and roof section
  • Indicates dimensions of wall plate heights from slab-on-grade
  • Indicates eave overhang dimension from exterior wall studs
  • Generic exterior wall details, not to scale
E1- Schematic, Generic Electrical Layouts:
  • Drawn to 1/4-inch scale
  • Suggested locations for electrical components: lighting fixtures, switches, and outlets
PDF Plan Sets - all printed in color on 11" x 17" paper.
  • Cheaper to print/copy than larger format plan sets.
  • Easier to use on the job site.
  • Easier to use when shopping for tile, etc.
  • More convenient to archive after your house or accessory building is complete.

*See important information before purchasing
