Plan Description


Clean lines define this West Indies design with a contemporary flair. Awnings shield the main front windows and add an element of interest to the smooth stucco walls. Rough-cut stacked stone adds texture to the water-table and columns. The Foyers leads past the front Den to the spacious Great Room with walls of glass providing outdoor views. This is open concept living at its best. A gourmet kitchen with large island services the Great Room and Dining areas. A wine cabinet and large Pantry is just around the corner. Just beyond the kitchen are three bedrooms that share two baths. One of which also doubles as a pool bath. The laundry room is most convenient to this side of the home and shares garage access. The Owner’s Suite is secluded to the opposite side of the home and has access to the covered lanai. Spacious walk-in closets lead to the Owner’s Bath with offers two vanities, a extra large shower and private privy. The impressive 14’ volume great room ceiling makes the home feel even more open.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

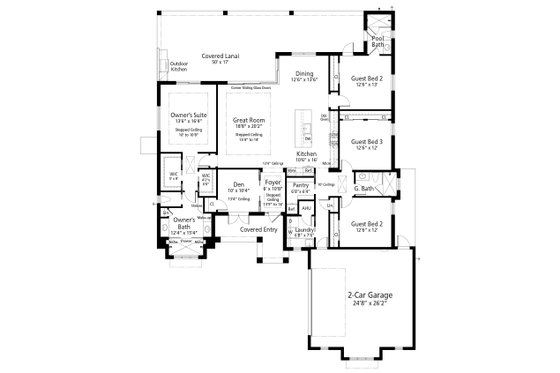

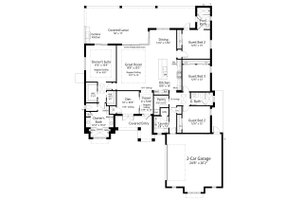

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 1
Garages: 2

Dimension

Depth : 84' 6"
Height : 23'
Width : 62' 6"

Area

Total : 2515 sq/ft
Decks : 701 sq/ft
Garage : 661 sq/ft
Main Floor : 2515 sq/ft
Porch : 147 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 13' 4"

Roof

Primary Pitch : 5/12
Roof Framing : Truss
Roof Type : Hip

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Block

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Main Floor Laundry

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Zero Lot Lines

Outdoor Spaces

Courtyard
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Screened Porch

More

Empty Nester
Jack & Jill Bath
Suited For Vacation Home

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set
  • Cover Sheet

    The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.

  • Wall Sections

    The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

  • Foundation Plan

    The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

  • Second floor framing (where appropriate)

    The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

  • Floor Plans

    The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

  • Roof Plan & Soffit (Chase Layout) Plan

    The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

  • Reflected Ceiling Plan

    The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

  • Exterior Elevations

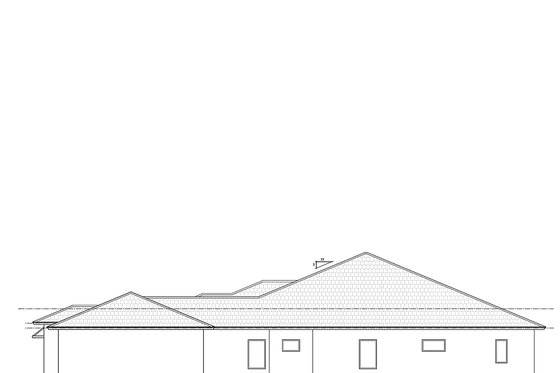

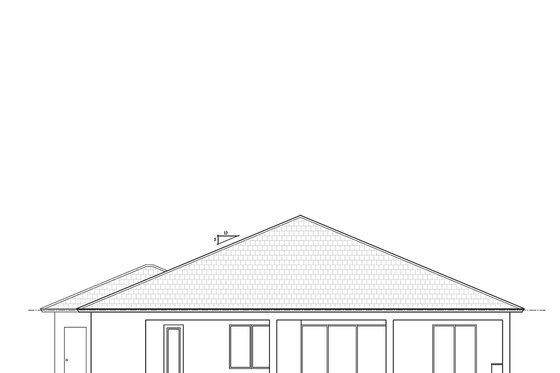

    The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.

  • Cross Section & Interior Elevations

    The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.

  • Electrical Plan

    The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
