Plan #27-384

Key Specs


  • 4381 sq ft

  • 5 Bedrooms

  • 4.5 Bathrooms

  • 2 Floors

  • 3 Garage
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

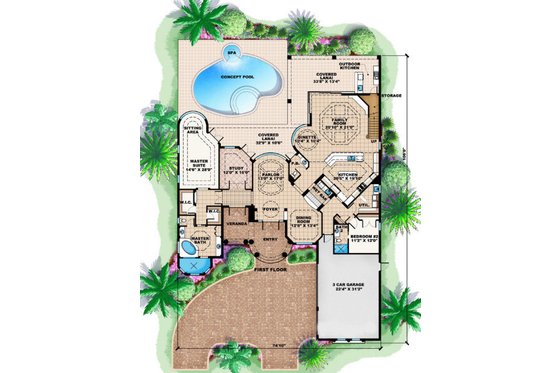

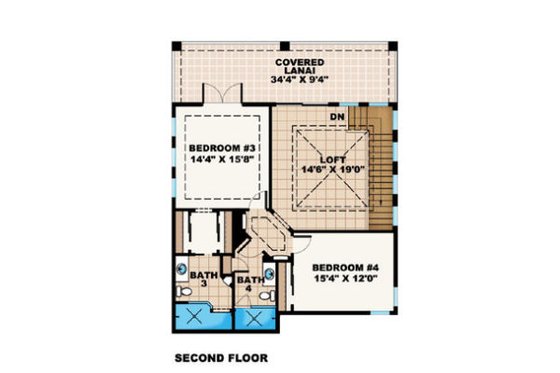

Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Garage Stalls : 3
Baths : 4.5
Stories : 2
Bedrooms : 5
Potential Bedrooms : 0

Dimension

Height : 33'
Depth : 106'
Width : 75'

Area

Garage Sq Ft : 793 sq ft
Upper Floor Sq Ft : 1059 sq ft
Porch Sq Ft : 1510 sq ft
Main Floor Sq Ft : 3322 sq ft
Total Sq Ft : 4381 sq ft *
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Exterior Wall Framing

Framing : Concrete block

Bedroom Features

Guest Suite
Walk In Closet
Split Bedrooms
Main Floor Bedrooms
In Law Suite
Main Floor Master Bedroom

Kitchen Features

Breakfast Nook
Peninsula Eating Bar
Butler's Pantry
Kitchen Island

Additional Room Features

Master Sitting Area
Den Office Study Computer
Library Room
Family Room Keeping Room
Bonus Play Flex Room

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Loft Balcony
Covered Rear Porch

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing

Plan Options
CAD Set $2250.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $2250.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $2250.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

What's included?
Instant Download After Checkout

Subtotal Now $2250.00

You save $250.00 (10% savings)

Sale ends on 09/30/2016

Best Price Guaranteed*

Or order by phone: 1-800-913-2350
